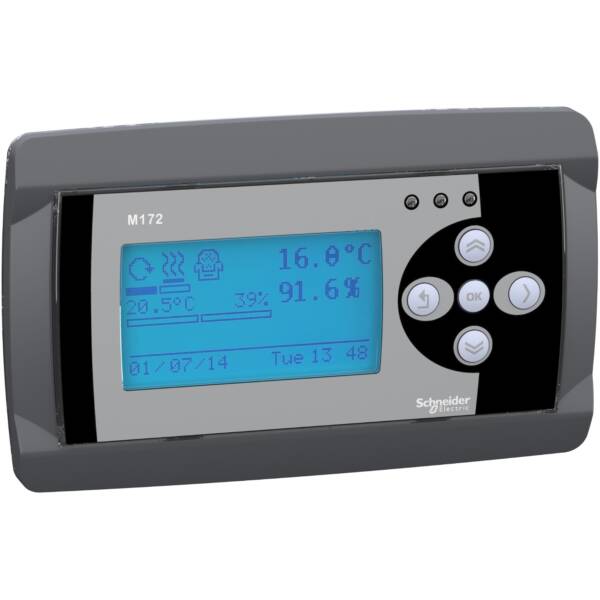

This display belongs to Modicon M171/M172 range of HVAC controllers. This display module features a backlit LCD display with 240 x 140 pixels resolution. The number of keys in the display module is 5. This remote monochrome display is dedicated to the M172 Optimized and M172 Performance logic controllers. It has a monochrome backlit LCD screen with 240 x 140 pixels reolution. It embeds a real time clock. Its dimensions are 90mm (width) x 27mm (depth) x 160mm (height). It weighs 0.197kg. It is remote display for blind Modicon M172 logic controllers. This product is certified by CE, cURus (UL Recognized), CSA, EAC, RCM, RoHS China. This remote monochrome display is dedicated to the M172 Optimized and M172 Performance logic controllers. It mounts on 35mm DIN rail, or on panel with TM172AP12PM mounting accessory. Modicon M171/M172 controllers is the best choice for complete automation solutions for HVAC machines. Modicon M171 and M172 logic controllers are designed for HVAC OEMs and help them to maximize profitability and energy efficiency.

Brand

Schneider Electric

Range

Modicon M171/M172/M173

Part No

TM172DGRP

Weight (kg)

0.26 kg

Supporting protocol for SERCOS

FALSE

Number of function buttons, programmable

5

With numeric keyboard

TRUE

With alpha numeric keyboard

FALSE

Radio standard GPRS

FALSE

Supporting protocol for INTERBUS-Safety

FALSE

Type of display

LCD

Supporting protocol for AS-Interface Safety at Work

FALSE

Radio standard GSM

FALSE

Radio standard UMTS

FALSE

Supporting protocol for DeviceNet Safety

FALSE

Touch technology

None

Supporting protocol for EtherNet/IP

FALSE

Supporting protocol for Foundation Fieldbus

FALSE

Operating temperature

-20…55 Degrees celsius

Screen diagonal

3.54

Built-in depth

27

Supporting protocol for SafetyBUS p

FALSE

Voltage type (supply voltage)

AC/DC

Supporting protocol for PROFINET CBA

FALSE

Supporting protocol for PROFINET IO

FALSE

Supporting protocol for PROFIsafe

FALSE

Radio standard Bluetooth

FALSE

Supporting protocol for ASI

FALSE

Radio standard WLAN 802.11

FALSE

Supply voltage AC 50 Hz

24 Volt

Supply voltage AC 60 Hz

24 Volt

Supporting protocol for KNX

FALSE

Number of pixels, horizontal

128

Supporting protocol for CAN

TRUE

Colour display

FALSE

Supporting protocol for INTERBUS

FALSE

IO link master

FALSE

Supporting protocol for DeviceNet

FALSE

Rail mounting possible

FALSE

Supporting protocol for Modbus

FALSE

Suitable for safety functions

FALSE

Width of the front

90

Supporting protocol for Data-Highway

FALSE

Height of the front

160

Supply voltage DC

24 Volt

Supporting protocol for LON

FALSE

Power consumption

2

Supporting protocol for other bus systems

FALSE

Supporting protocol for SUCONET

FALSE

Wall mounting/direct mounting

TRUE

Number of pixels, vertical

64
