Serial line cartridge, Modicon M221, 1 communication extension - Schneider Electric - TMC2SL1

Serial line cartridge, Modicon M221, 1 communication extension - Schneider Electric - TMC2SL1

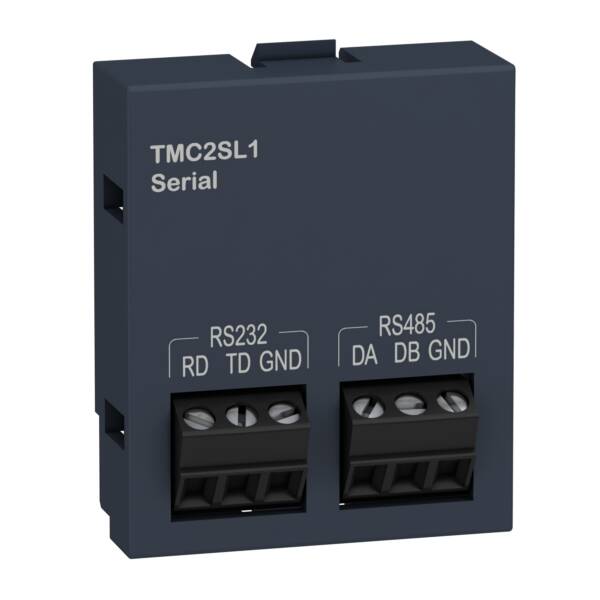

TMC2SL1

Serial line cartridge, Modicon M221, 1 communication extension - Schneider Electric - TMC2SL1

Automation

~~List Price £74.20 +VAT~~

Our Price £59.36 +VAT

SAVE 21% OFF List Price

Estimated delivery between 7-10 working days

This product is part of the Modicon M221 range, an offer of programmable logic controllers for hardwired architectures. This serial line cartridge is a communication extension which support transmission rate 1.2kbps to 115.2kbps for bus length of 15m for RS485 and 3m for RS232. This product requires minimal installation and offers tremendous versatility. There is no insulation between lines and internal logic. It has non isolated serial link communication port protocols like Modbus master/slave and RTU/ASCII or SoMachine-Network. Its dimensions are 35mm (Width) x 15mm (Depth) x 41mm (Height). It weighs 0.015kg. This cartridge is compatible with Modicon M221C PLC. Achieve benchmark performance while increasing profitability with the Modicon M221 through intuitive machine programming with SoMachine Basic, ready-to-use applications and function blocks

Brand: Schneider Electric
Range: Logic Controller - Modicon M221
Part No: TMC2SL1
Weight (kg): 0.03 kg
Type: Logic Controller - Modicon M221
Supporting protocol for SERCOS: FALSE
SIL according to IEC 61508: None
With optical interface: FALSE
Transmission rate: 1.2
With potential separation: FALSE
Performance level acc. EN ISO 13849-1: None
Radio standard GPRS: FALSE
Height: 41
Supporting protocol for INTERBUS-Safety: FALSE
Category according to EN 954-1: 1
Width: 35
Redundancy: FALSE
Supporting protocol for AS-Interface Safety at Work: FALSE
Radio standard GSM: FALSE
Explosion safety category for dust: None
Radio standard UMTS: FALSE
Depth: 15
Explosion safety category for gas: None
Supporting protocol for DeviceNet Safety: FALSE
Supporting protocol for EtherNet/IP: FALSE
Supporting protocol for Foundation Fieldbus: FALSE
Supporting protocol for SafetyBUS p: FALSE
Supporting protocol for PROFINET CBA: FALSE
Supporting protocol for PROFINET IO: FALSE
Supporting protocol for PROFIsafe: FALSE
Supporting protocol for ASI: FALSE
Radio standard Bluetooth: FALSE
Radio standard WLAN 802.11: FALSE
Supporting protocol for PROFIBUS: FALSE
Appendant operation agent (Ex ia): FALSE
Type of data transmission: Serial
Supporting protocol for TCP/IP: FALSE
Supporting protocol for KNX: FALSE
Supporting protocol for CAN: FALSE
Appendant operation agent (Ex ib): FALSE
Supporting protocol for INTERBUS: FALSE
IO link master: FALSE
Supporting protocol for DeviceNet: FALSE
Supporting protocol for MODBUS: TRUE
Suitable for safety functions: FALSE
Supporting protocol for Data-Highway: FALSE
Supporting protocol for LON: FALSE
Supporting protocol for other bus systems: FALSE
Supporting protocol for SUCONET: FALSE
Number of HW-interfaces RS-485: 1
Number of HW-interfaces RS-232: 1

Datasheet for TMC2SL1 - Serial line cartridge, Modicon M221, 1 communication extension - Schneider Electric - TMC2SL1

Download
