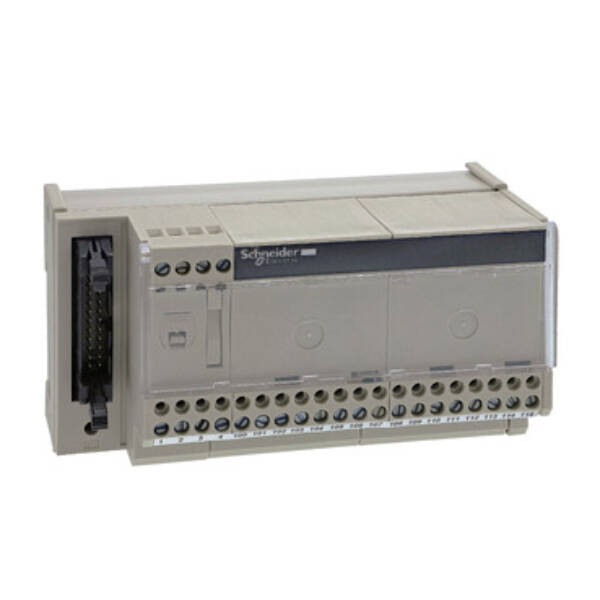

"This product is part of the Modicon ABE7 range, an offer of connection sub-bases for pre-wired system." "This is a passive connection sub-base for 16 channels as digital I/O, with 1 terminal per channel." "Its control circuit voltage is 24VDC." "It provides a digital I/O control function." "It is furnished with screw terminals for electrical connection and 20-way HE10 connection to programmable logic controllers." "The tightening torque of wiring is 0.6N.m with flat diameter 3.5mm screwdriver." "It is a universal sub-base with IP20 degree of protection. It weighs 0.274kg." 0 "It is suitable into any types of industrial applications needing rapid connection of I/O modules (digital, analog, and counter) to operative parts." "This product is certified by DNV, CSA, UL, GL and EAC." "It is suitable for use with Modicon Quantum and Modicon Premium controllers, Modicon TM3 and X80 I/O expansion modules." "It is delivered in 1 package (PCE type)." "Its fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit)." "Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment."

Brand

Schneider Electric

Range

Advantys Telefast ABE 7

Part No

ABE7H16R10

Weight (kg)

0.28 kg

Type

Advantys Telefast ABE 7

Connection for NPN-sensors

FALSE

Colour housing

Other

Thread sleeves sensor/actuator slots

Other

Material of contact surface

Other

With potential separation

FALSE

Degree of protection (IP)

Other

Material housing

Plastic

With LED indication

FALSE

Pollution degree

1

Explosion safety category for dust

Other

Explosion safety category for gas

Other

Cable length configurable

FALSE

Material insulation body

Other

Type of branches for sensor-/actuator cables

Other

Operation temperature

20…80 °C

Fix cable version suitable for cable guide chain

FALSE
