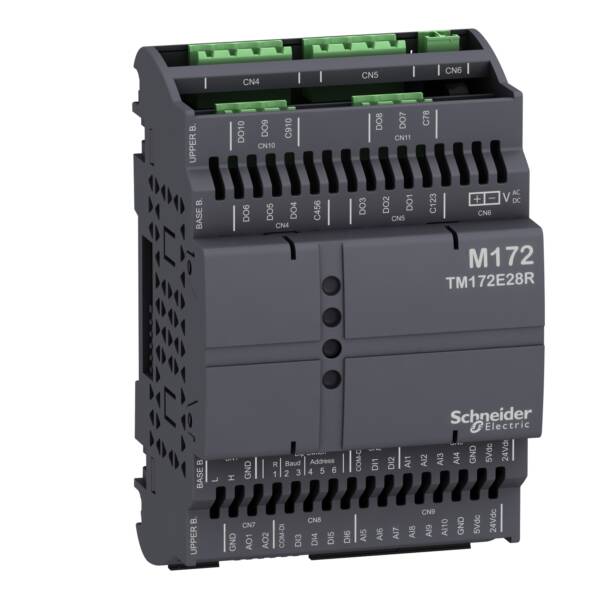

This product is part of the Modicon M171/M172 range, an offer I/O modules for HVAC solutions. This additional I/O module offers 6 discrete inputs with 2 display positive logic (sink) up to 2kHz and 4 display positive logic (sink). It is a module with discrete input voltage of 24V AC/DC, 2.5mA. It offers 10 configurable by pair analogue input with 2 programmable analogue outputs. It is an IP20 rated product. Its dimensions are 72mm (width) x 59mm (depth) x 110mm (height). It weighs 0.19kg. The main application of this module is HVAC control. This product is certified by CE, RCM, EAC, CSA and CURus. It meets IEC 61000-4-2, EN 60068-2-6 Fc, IEC 61000-4-3, IEC 61000-4-5, EN 60730-1 and EN 60730-2-9 standards. It is suitable for DIN rail mount and panel mounting with accessory. Modicon M171/M172 benefits maximize profitability and energy efficiency by using scalable automation control with the Modicon M171/M172. Modicon M171/M172 logic controllers and intuitive software EcoStruxure Machine Expert - HVAC are designed for maximizing profitability and energy efficiency.

Brand

Schneider Electric

Range

Modicon M171/M172/M173

Part No

TM172E28R

Weight (kg)

0.26 kg

Type

Modicon M171/M172

Input current at signal 1

0.5

Analogue input, resistor temperature

TRUE

Type of electric connection

Screw connection

Voltage type (supply voltage)

AC/DC

Analogue input, thermocouple

FALSE

Analogue input, resistor

FALSE

SIL according to IEC 61508

None

Analogue input signal configurable

TRUE

Type of digital output

Relay

Appendant operation agent (Ex ia)

FALSE

Performance level according to EN ISO 13849-1

None

Supply voltage AC 50 Hz

24 Volt

Permitted voltage at input

0…24 Volt

Supply voltage AC 60 Hz

24 Volt

Type of voltage (input voltage)

DC

Height

110

Time delay at signal change

200 Millisecond

Appendant operation agent (Ex ib)

FALSE

Type of output voltage

AC

Width

72

Analogue input, current

TRUE

Analogue output, voltage

TRUE

Resolution of the analogue outputs

13

Analogue output signal configurable

TRUE

Number of digital outputs

10

Suitable for safety functions

FALSE

Number of digital inputs

6

Resolution of the analogue inputs

13

Analogue output, current

TRUE

Supply voltage DC

20…38 Volt

Number of analogue outputs

2

Explosion safety category for dust

None

Output current at digital output

3

Number of analogue inputs

10

Output voltage at digital output

240 Volt

Depth

59

Explosion safety category for gas

None

Analogue input, voltage

TRUE

Short-circuit protection, digital outputs available

FALSE

Digital in-/outputs, configurable

FALSE
