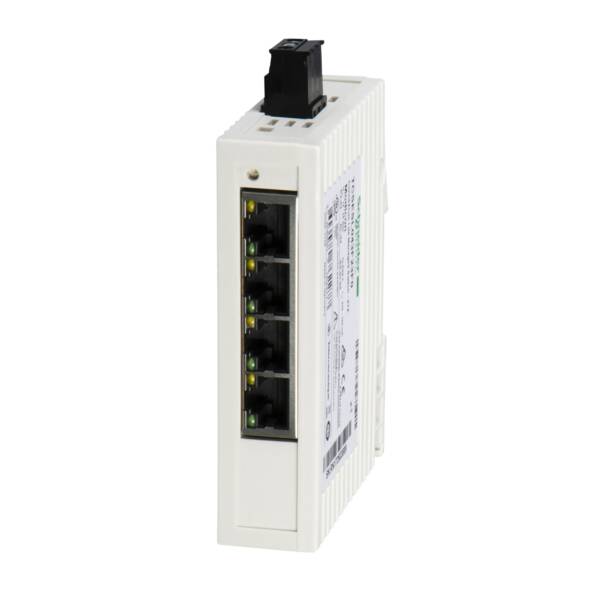

"This product is part of the ConneXium range, an offer of Ethernet connecting devices." "This managed switch comes with Ethernet TCP/IP protocol." "It comes with 4 copper cable transmission ports and maximum number of switches in a ring is 50." "The lite managed switch is suitable for simple application that requires a ring architecture, or as an alternative to unmanaged switches." "This product works at a power consumption of 2.35W and a rated voltage of 12 to 24V DC." "It has a removable 6-pin power supply connector. The supported transmission medium is twisted shielded pair category 5E copper cable." "Its dimensions are 25mm (width) x 114mm (height) x 79mm (depth) and weighs 0.103 kg." "This switch can manage a single ring with RSTP compatible devices. It also has the capability of managing network traffic, diagnostics and redundancy with RSTP protocol." "It is CE, UL, RCM, EAC, UKCA certified and conforms to UL 61010 standard." "It is designed to be mounted on a 35mm symmetrical DIN rail." "It provides low power consumption and compact footprint. It also provides simple connectivity for multiple Ethernet device." "The Modicon Networking range offers you a smart and flexible way to integrate Ethernet solutions into your operation, from the device level to the control network and to your corporate network."

Brand

Schneider Electric

Range

Modicon Networking

Part No

TCSESL043F23F0

Weight (kg)

0.17 kg

Type

Modicon Switch

Number of ports 10/100 Mbps RJ45

3

Manageable

TRUE

Height

131

Degree of protection (IP)

IP30

Width

47

Layer 2

FALSE

Layer 3

FALSE

Mounting method

DIN rail (top hat rail)

Depth

111

Power over Ethernet

Other

Ethernet

TRUE
