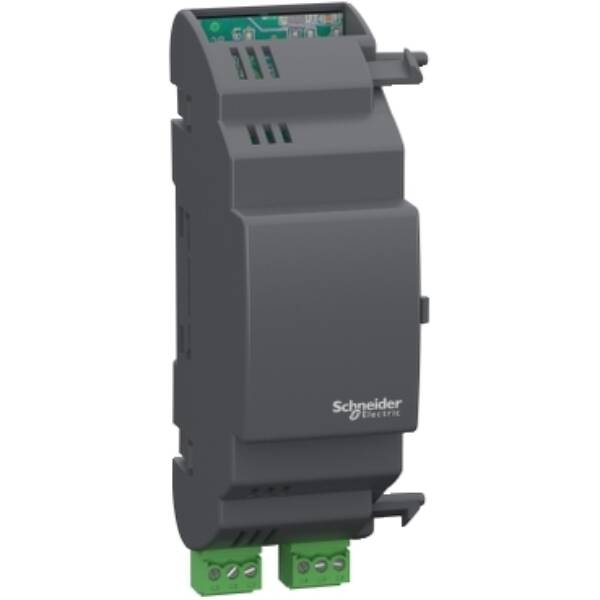

"This communication module is part of the Modicon M171/M172/M173 range, a control offer for HVAC/Pumping applications." "This optional module provides a specific connection to the Modbus SL or BACnet MS/TP bus." "It has two screw terminal blocks as a communication port." "It allows the HVAC controllers to manage Data on the Modbus SL or BACnet MS/TP busses." "It measures 100mm high, 35mm wide and 53.93mm deep, and weighs 0.077kg." "This communication module allows controllers to get an additional communication port." "It is certified by CE, CSA, cURus, and EAC." "It is compatible with M172 Optimized, M172 Performance, and M171 Performance logic controllers." "It is sold in a 1-piece package." "It is mounted by simply interlocking on the left-hand side of M171 Performance or M172 logic controllers." "Modicon M171/M172/M173 controllers are designed for complete automation solutions for HVAC and Pumping machines." "Modicon M171/M172/M173 range is for OEMs and helps to maximize profitability or energy efficiency in HVAC applications."

Brand

Schneider Electric

Range

Modicon M171/M172/M173

Part No

TM171ARS485

Weight (kg)

0.18 kg

Type

Modicon M171/M172

Supporting protocol for SERCOS

FALSE

SIL according to IEC 61508

None

With optical interface

FALSE

Transmission rate

100000

With potential separation

TRUE

Performance level acc. EN ISO 13849-1

None

Radio standard GPRS

FALSE

Height

110

Supporting protocol for INTERBUS-Safety

FALSE

Category according to EN 954-1

1

Width

35

Redundancy

FALSE

Supporting protocol for AS-Interface Safety at Work

FALSE

Radio standard GSM

FALSE

Explosion safety category for dust

None

Radio standard UMTS

FALSE

Depth

54

Explosion safety category for gas

None

Supporting protocol for DeviceNet Safety

FALSE

Supporting protocol for EtherNet/IP

FALSE

Supporting protocol for Foundation Fieldbus

FALSE

Supporting protocol for SafetyBUS p

FALSE

Supporting protocol for PROFINET CBA

FALSE

Supporting protocol for PROFINET IO

FALSE

Supporting protocol for PROFIsafe

FALSE

Supporting protocol for ASI

FALSE

Radio standard Bluetooth

FALSE

Supporting protocol for PROFIBUS

FALSE

Appendant operation agent (Ex ia)

FALSE

Radio standard WLAN 802.11

FALSE

Type of data transmission

Serial

Supporting protocol for TCP/IP

FALSE

Supporting protocol for KNX

FALSE

Supporting protocol for CAN

FALSE

Appendant operation agent (Ex ib)

FALSE

Supporting protocol for INTERBUS

FALSE

IO link master

FALSE

Supporting protocol for DeviceNet

FALSE

Suitable for safety functions

FALSE

Supporting protocol for MODBUS

TRUE

Supporting protocol for Data-Highway

FALSE

Supporting protocol for LON

FALSE

Supporting protocol for other bus systems

TRUE

Supporting protocol for SUCONET

FALSE

Number of HW-interfaces RS-485

1

Number of HW-interfaces RS-232

1
