TM171ACB4OI1M

Modicon M171 Optimized LV Connector 1m cable - Schneider Electric - TM171ACB4OI1M

Automation

~~List Price £12.30 +VAT~~

Our Price £9.84 +VAT

SAVE 21% OFF List Price

Estimated delivery between 7-10 working days

Get in touch

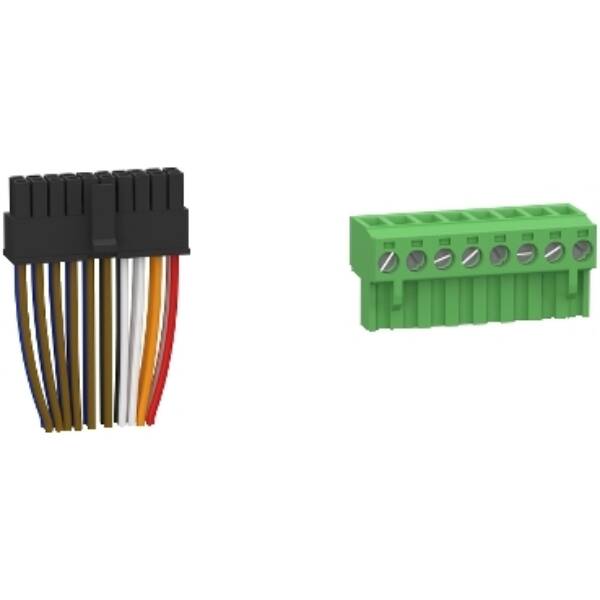

"This connector is part of the Modicon M171/M172/M173 range, a control offer for HVAC/Pumping applications." "This Low voltage connector is an accessory to the M171 optimized controllers." "It is a Screw terminal block and a cordset equipped with a 20-pin connector at one end." "It allows to connect the digital outputs to the controller." "The connected digital outputs are 0-10V." "The cable measures 1m." "This connection accessory is dedicated to M171 Optimized controllers." "It is sold in a 5-piece package." "Modicon M171/M172/M173 controllers are designed for complete automation solutions for HVAC and Pumping machines." "Modicon M171/M172/M173 range is for OEMs and helps to maximize profitability or energy efficiency in HVAC applications."

Brand: Schneider Electric
Range: Modicon M171/M172/M173
Part No: TM171ACB4OI1M
Weight (kg): 0.13 kg
Type: Modicon M171/M172
Approved type of underground installation: Other
Armouring/reinforcement: None
Permitted cable outer temperature during assembling/handling: 10…50 Degrees celsius
Permitted cable outer temperature after assembling without vibration: 10…50 Degrees celsius
Number of stranding elements: 1
Cable type: Other
Circuit integrity according to IEC 60331-23: FALSE
Halogen free according to EN IEC 60754-2: FALSE
Oil resistant according to EN IEC 60811-404: FALSE
Protective sheath: Other
Specification material outer sheath: Other
Specification core insulation: Other
Min. permitted bending radius, stationary application/permanent installation: 15
Min. permitted bending radius, moving application/free movement: 15
Compatible with Grade2TV according to XP-C 90-483: FALSE
Min. permitted bending radius, moving application with forced guidance: 15
Compatible with Grade3TV according to XP-C 90-483: FALSE
With rip cord: FALSE
Colour outer sheath: Other
Stranding element: No
Suitable for use as security alarm cable: FALSE
Material armouring: Other
Category: 5
Cable width approx.: 150
Cable height approx.: 55
Weight: 0.128
Low smoke according to EN IEC 61034-2: FALSE
With rodent protection: FALSE
Radial water blocking cable: FALSE
Longitudinal water blocking cable: FALSE
Halogen free according to EN IEC 60754-3: FALSE
Conductor surface: Other
Material outer sheath: Other
Stranding: Other
Suitable as signalling cable: FALSE
Diameter conductor: 1
Outer diameter approx.: 10
Drain wire: FALSE
Screen over stranding element: None
Conductor material: Copper
Suitable for underground installation: FALSE
Suitable as telephone cable: FALSE
Suitable as computer data cable: TRUE
Nominal cross section conductor: 0.8
Material core insulation: Other
Number of sheath layers: 1
AWG size: 24
Core identification according to HD 308 S2: FALSE
Flame retardant according to IEC 60332-1-2: FALSE
Flame retardant according to IEC 60332-3-22 (Cat A): FALSE
Flame retardant according to IEC 60332-3-21 (Cat A F/R): FALSE
Flame retardant according to IEC 60332-3-24 (Cat C): FALSE
Duplex: FALSE
Flame retardant according to IEC 60332-3-23 (Cat B): FALSE
Halogen free according to EN IEC 60754-1: FALSE
Flame retardant according to IEC 60332-3-25 (Cat D): FALSE
Number of cores: 10
Core identification: Colour
UV resistant: FALSE
Conductor category: Class 5 = flexible
Certified for shipboard application: FALSE
Cable geometry: Round
