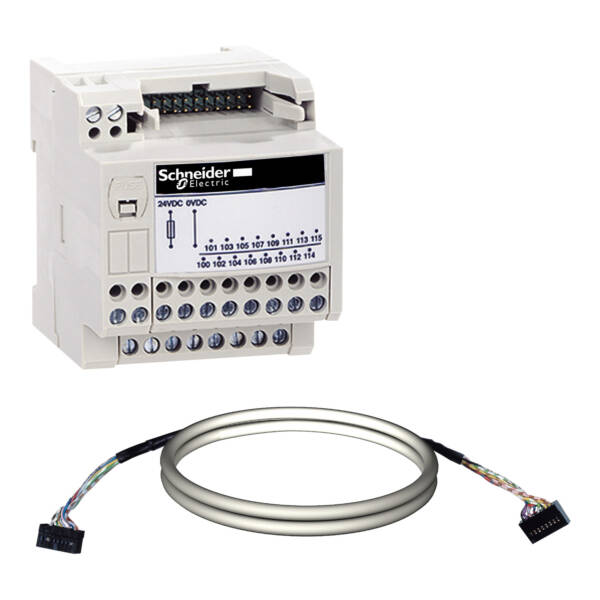

This product is part of the Modicon ABE7 range, an offer of connection sub-bases for Telefast pre-wired system. This passive discrete I/O sub-base offers 16 channels with 1 terminal per channel. The Low cast sub-base offers a rated supply voltage of 19V to 30V. It is furnished with screw clamp terminals for electrical connection. It is an IP2x rated product. It weighs 0.33kg. It is suitable for all types of industrial applications. This product is certified by GL, CSA, DNV, BV, LROS, UL, GL and EAC. It is compatible with Modicon TSX Micro PLC and Modicon Premium PLC. The fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). Modicon ABE7 means greater simplicity to rationalize wiring in your automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.

Brand

Schneider Electric

Range

Advantys Telefast ABE 7

Part No

ABE7H20E100

Weight (kg)

0.32 kg

Type

Advantys Telefast ABE 7

Connection for NPN-sensors

FALSE

Housing colour

Other

Thread sleeves sensor/actuator slots

Other

Material of contact surface

Other

With potential separation

FALSE

Degree of protection (IP)

Other

Housing material

Plastic

Pollution degree

1

With LED indication

FALSE

Explosion safety category for dust

Other

Explosion safety category for gas

Other

Cable length configurable

FALSE

Material insulation body

Other

Type of branches for sensor-/actuator cables

Other

Operating temperature

20…80 Degrees celsius

Fix cable version suitable for cable guide chain

FALSE
