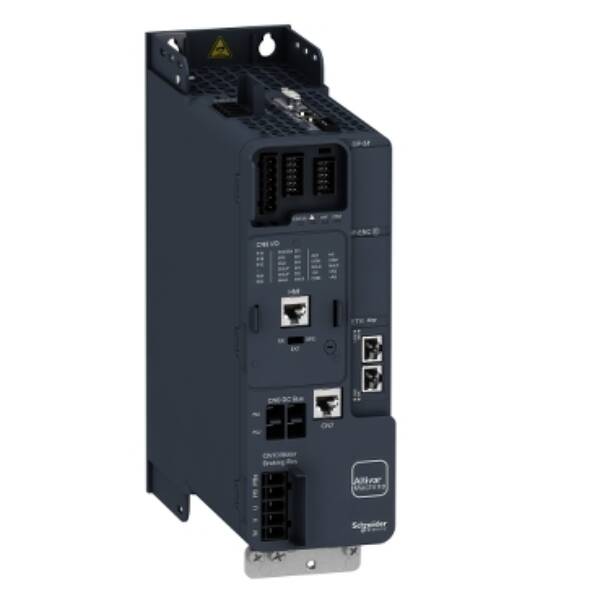

This Altivar 340 variable speed drive can feed 3-phase synchronous and asynchronous motors in open and closed loop control. Altivar Machine ATV340 drives are sized heavy duty as standard. It works at a rated power up to 2.2kW / 3hp and a rated voltage from 380V to 480V AC. ATV340 has been designed to meet the needs of applications for harsh environments, such as vibration, shock and non-conductive dust and where high temperature resistance up to 60 °C is needed. This product integrates Modbus serial line communication protocols as standard. This drive features multi-protocol Ethernet embedded, it consists of Ethernet IP and Modbus TCP communication interfaces. it weighs 1.8kg and its dimensions are, 85mm wide, 270mm high, 232.5mm deep. ATV340 incorporates functions and features suitable for the most common applications, including packaging, material handling, material working, hoisting. It conforms to international standards IEC/EN 61800-5-1 and IEC/EN 61800-3 (immunity and conducted and radiated EMC emissions), IEC 60721-3, IEC 61508, IEC 13849-1. It is also CE, UL, CSA, and TÜV certified. Accessories and options (encoder interface modules, I/O expansion modules, communication modules, braking resistors, line chokes, additional EMC filters) are available with Altivar Machine ATV340 drives, depending on the drive rating. It is designed to be mounted in vertical position (+/- 10 °) on a panel, thanks to 4 fixing holes. It is fully integrated inside Schneider Electric’s EcoStruxure Machine through DTM. It is possible to configure, control, and diagnose ATV340 drives directly in SoMachine and SoMove software by means of the same software brick (DTM).

Brand

Schneider Electric

Range

Altivar Machine ATV340

Part No

ATV340U22N4E

Weight (kg)

2.54 kg

Type

Altivar Machine ATV340

Supporting protocol for SERCOS

FALSE

Number of HW-interfaces other

1

Type of converter

U converter

With optical interface

FALSE

Mains voltage

380…480 V

Max. output frequency

599

Height

270

Supporting protocol for INTERBUS-Safety

FALSE

Mains frequency

50/60 Hz

Width

85

With control unit

FALSE

With PC connection

TRUE

Supporting protocol for AS-Interface Safety at Work

FALSE

Number of phases input

3

Depth

232.5

Max. output at quadratic load at rated output voltage

3

Supporting protocol for DeviceNet Safety

FALSE

Supporting protocol for EtherNet/IP

TRUE

Supporting protocol for Foundation Fieldbus

FALSE

Max. output at linear load at rated output voltage

3

Number of phases output

3

Supporting protocol for SafetyBUS p

FALSE

Supporting protocol for PROFINET CBA

FALSE

Supporting protocol for PROFINET IO

FALSE

Supporting protocol for PROFIsafe

FALSE

Supporting protocol for ASI

FALSE

Relative symmetric net voltage tolerance

10

Supporting protocol for PROFIBUS

FALSE

Relative symmetric net frequency tolerance

5

Supporting protocol for TCP/IP

TRUE

Application in domestic- and commercial area permitted

FALSE

Supporting protocol for KNX

FALSE

Degree of protection (IP)

IP20

Supporting protocol for CAN

FALSE

Supporting protocol for INTERBUS

FALSE

Integrated breaking resistance

FALSE

Application in industrial area permitted

TRUE

Supporting protocol for BACnet

FALSE

Supporting protocol for DeviceNet

FALSE

Supporting protocol for MODBUS

TRUE

Number of digital outputs

2

Supporting protocol for Data-Highway

FALSE

Number of digital inputs

5

Number of analogue outputs

1

4-quadrant operation possible

TRUE

Number of analogue inputs

2

Supporting protocol for LON

FALSE

Supporting protocol for other bus systems

FALSE

Supporting protocol for SUCONET

FALSE

Number of HW-interfaces RS-485

1

Nominal output current I2N

6.6

Number of HW-interfaces industrial Ethernet

2

Max. output voltage

480
