RXM4AB1FD

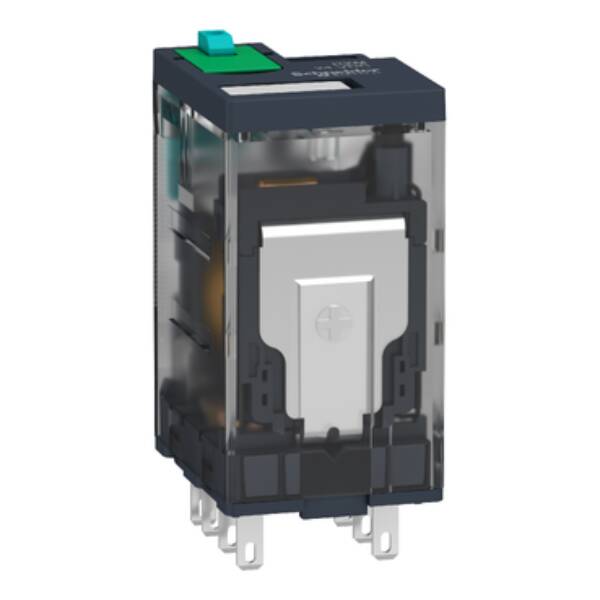

Miniature plug-in relay, 6 A, 4 CO, 110 V DC - Schneider Electric - RXM4AB1FD
Control
List Price £9.24
+VAT
Our Price £6.93
+VAT
SAVE 26% OFF List Price
Add to basket
Fast Track Delivery Product
Get in touch
Product description
Specifications
Downloads

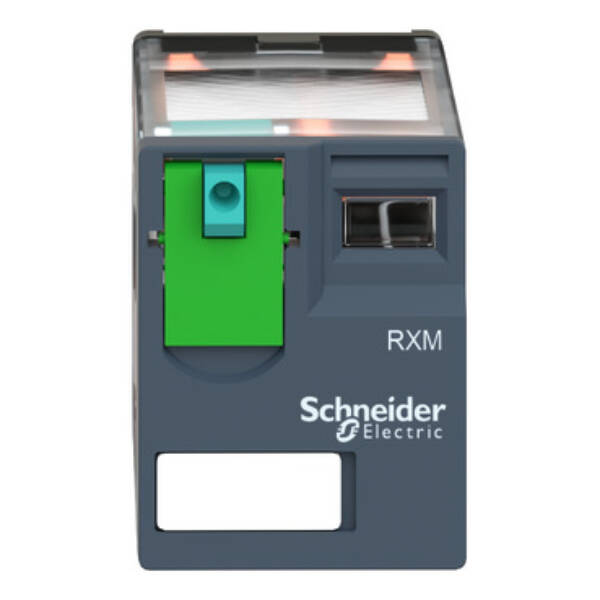

RXM miniature relays are part of Harmony Electromechanical Relays. This is a plug in relay to be mounted on a RXZE socket. It is a 4 C/O relay with current rating of 6A, control circuit voltage of 110 V DC. It also offers one-step loackable test button and mechanical indicator for contact status. The testbutton is activated momentarily by pushing the blue pushbutton on the front and locked by flipping up the green part. The mechanical indicator is next to the testbutton, where an orange flag indicates the relay contact status. Workablity for hard-wired logic automated systems to complement the functions of industrial progammable logic controllers (PLCs). Its design is fit for industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltage switchgear, motor controls, PLC Interfaces, power supplies, building or medical equipment, lighting controls. Product and conforms to international standard and certifications like IEC, CE, UL, CSA, EAC, Lloyd's, RoHS and REACH. RXM Relay should be used with a RXZE socket (screw clamp, screw connector, push-in terminal). To protect against vibrations, plastic/metal clamp can be added to the socket. Protection modules and marking legend are also available. It is sold in lots of 10 and reference includes relay only. The RXM plug-in relays are a series of industrial plug-in relays designed for both simple and complex automation systems and available with 2 CO (12A), 3 CO (10A), 4 CO (6A) contacts, 4 CO (3A) low level contacts.
Brand
Schneider Electric
Range
Harmony Electromechanical Relays
Part No
RXM4AB1FD
Weight (kg)
0.04 kg
Type
Harmony Electromechanical Relays
Width
21
Type of electric connection
Plug-in connection
Drive, switching attitude
Mono stable
With forced-guided contacts
FALSE
Nominal current
6
With LED indication
FALSE
Drive, polarization
Polarity free
Depth
55
Type of switch contact
Other
Complete with socket
FALSE
Number of contacts as change-over contact
4
Voltage type for actuating
DC
Height
27
Rated control supply voltage Us at DC
110 V
Degree of protection (IP)
IP40
With detachable clamps
FALSE
Datasheet for RXM4AB1FD - Miniature plug-in relay, 6 A, 4 CO, 110 V DC - Schneider Electric - RXM4AB1FD
Download
