Modicon M221
TM221C16R
TM221C16R

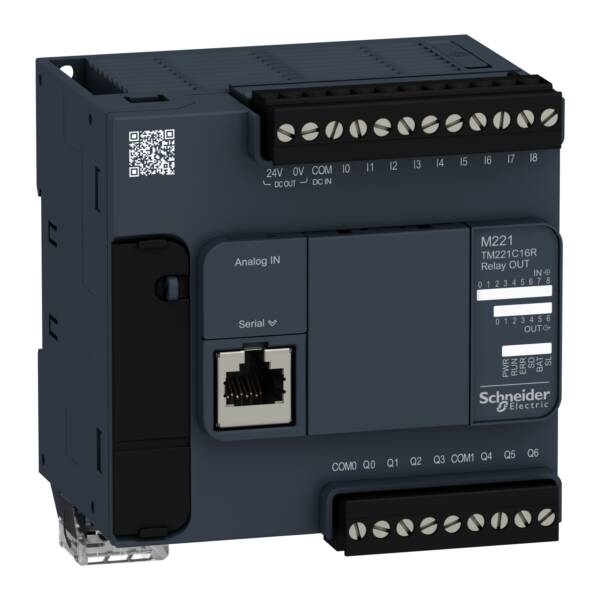

Logic controller, 16 inputs/outputs, 7 relay outputs, 100…240 V AC - Schneider Electric - TM221C16R
Industrial Automation and Control
This product is part of the Modicon M221 range, an offer of programmable logic controllers for hardwired architectures. This logic controller provides 9 discrete inputs and 7 relay outputs with 10bit input resolution, normally opened relay output. It is a Modicon logic controller with a rated supply voltage of 100V to 240V AC, an output voltage of 5V to 125V DC, 5V to 250V AC and an output current of 2A with sink or source input logic. This product requires minimal installation and offers tremendous versatility. Integrated connections are USB port with mini B USB 2.0 connector, non isolated serial link serial 1 with RJ45 connector and RS485 interface and non isolated serial link serial 2 with RJ45 connector and RS232/RS485 interface. It is a Modicon M221 controller with a network frequency of 50/60Hz, 256KB for internal variables RAM, user application and data RAM, built-in flash memory of 256KB and SD card memory capacity of 2GB. It is an IP20 rated product. Its dimensions are 95mm (Width) x 70mm (Depth) x 90mm (Height). It weighs 0.346kg. This product is certified by CE, IACS E10, RCM, ABS, LR, DNV-GL, CSA, EAC and CULus. It meets EN/IEC 60664-1, EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. It supports DIN rail mount. Achieve benchmark performance while increasing profitability with the Modicon M221 through intuitive machine programming with SoMachine Basic, ready-to-use applications and function blocks
List Price £220.84
+VAT
Our Price £176.67
+VAT
SAVE 21% OFF List Price
Add to basket
Estimated delivery between 7-10 working days
Specifications
Brand
Schneider Electric
Type
Logic Controller - Modicon M221
Range
Logic Controller - Modicon M221
Part No
TM221C16R
Weight (kg)
0.30 kg
Datasheet for TM221C16R - Logic controller, 16 inputs/outputs, 7 relay outputs, 100…240 V AC - Schneider Electric - TM221C16R
Download
