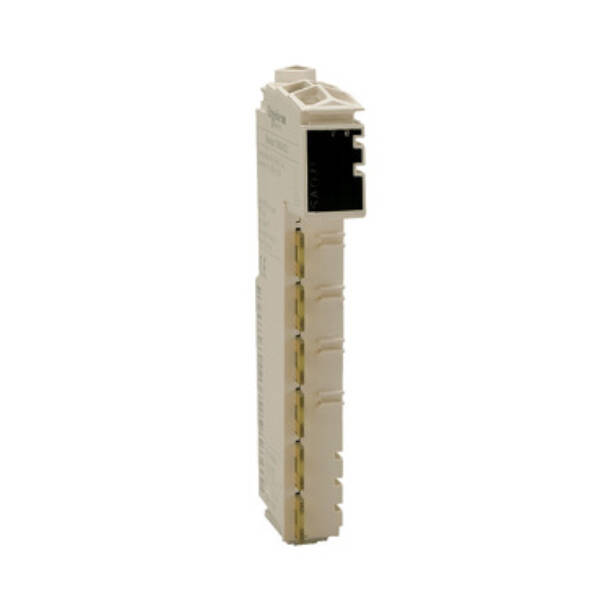

This product is part of the Modicon TM5 range, an High-Performance and Safe IP20 Modular I/O System. This IO module features 4 discrete inputs sink logic, 1 analog input -10/+10V DC, 2 discrete transistor outputs 0.5A source logic, 1 analog output 0…20mA. There is an isolation between channel and bus at 500V AC. This product is part of a flexible and scalable I/O configuration for automation solutions. It features 2 LEDs for power supply, 2 LEDs for safety status and 20 LEDs for input status signaling. It is furnished with 2 wires for electrical connection. The housing colour is white. It weighs 0.025kg. The Modicon TM5 meets the typical requirements of production and packaging machinery, as well as material handling and assembly systems. This product is certified by GOST-R, C-Tick, cULus and CSA. It meets IEC 61131-2, UL 508, CSA C22.2 No 213 and CSA C22.2 No 142 standards. This product is compatible with Modicon LMC058 motion controller and Modicon M258 logic controller. It is installed by mounting on a 35mm DIN rail. This modular IO system provides a flexible and scalable configuration of remote or distributed IO islands by connection with Modicon and PacDrive 3 controllers. Flexible and scalable, designed for complex machines.

Brand

Schneider Electric

Range

Modicon TM5 IP20 modular I/O system

Part No

TM5SMM6D2L

Weight (kg)

0.04 kg

Type

Modicon TM5 IP20 modular I/O system

Input current at signal 1

3.3

Analogue input, resistor temperature

FALSE

Type of electric connection

Other

Analogue input, thermocouple

FALSE

Voltage type (supply voltage)

DC

Analogue input, resistor

FALSE

SIL according to IEC 61508

None

Analogue input signal configurable

FALSE

Type of digital output

Transistor

Appendant operation agent (Ex ia)

FALSE

Performance level according to EN ISO 13849-1

None

Permitted voltage at input

24 Volt

Type of voltage (input voltage)

DC

Height

99

Time delay at signal change

1 Millisecond

Appendant operation agent (Ex ib)

FALSE

Type of output voltage

DC

Width

12.5

Analogue input, current

TRUE

Analogue output, voltage

TRUE

Analogue output signal configurable

FALSE

Resolution of the analogue outputs

12

Suitable for safety functions

FALSE

Number of digital outputs

2

Number of digital inputs

4

Resolution of the analogue inputs

12

Analogue output, current

TRUE

Number of analogue outputs

1

Explosion safety category for dust

None

Supply voltage DC

24 Volt

Number of analogue inputs

1

Output current at digital output

0.5

Output voltage at digital output

24 Volt

Depth

75

Explosion safety category for gas

None

Analogue input, voltage

TRUE

Short-circuit protection, digital outputs available

TRUE

Digital in-/outputs, configurable

FALSE
