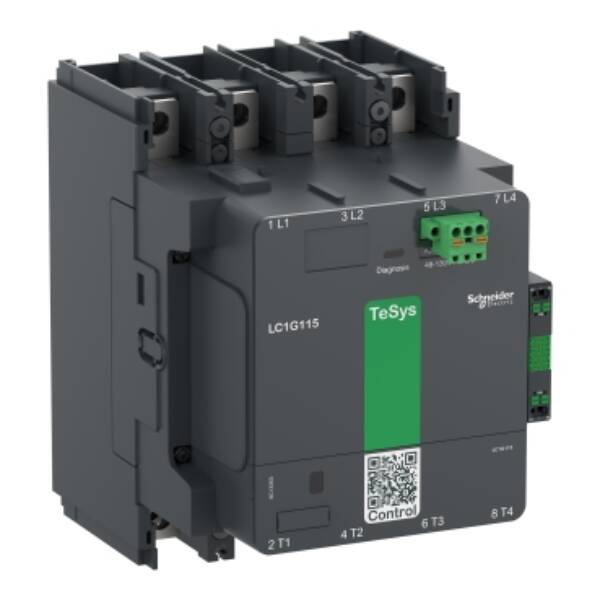

TeSys Giga high power contactor, 4 poles (4 NO) for category AC-1 applications up to 330A @440V. Equipped with 48-130 V AC/DC wide band low consumption electronic coil and embedded highly reliable 1NO+1NC auxiliary contact block (17V 1mA). Designed for demanding applications with maximum operating rates up to 300 cycles per hour and environments up to 60°C. It’s built with high reliability delivering mechanical durability up to 8 million cycles. Contact Wear Diagnosis (CWD) is a standard function, which continuously monitors and provide feedback through healthy and alarm conditions by an LED indicator. It is possible to replace switching module (main contacts), control module enhancing contactor life with simple maintenance activities. Front accessible main power connections are with bolted connection and control connections by push-in terminals for easy and quick assembly. It provides IP2x protection from front face with optional terminal shrouds conforming to IEC 60529 and VDE 0106. It can cover -25°C to 60°C operation ambient air temperature and directly mounted on plate, with no derating up to 3000m altitude. Contactor can be installed in three quadrants of vertical plane, and OLR could be directly mounted below contactor. The dimensions are 193 mm x 143 mm x 193 mm (H x W x D), compact size enables panel space savings. Multi standards certified (CB, CCC, cULcs, CE, UKCA marking). Unique QR code provides quick access to complete product data.

Brand

Schneider Electric

Range

TeSys Giga contactors

Part No

LC1G2254EHEN

Weight (kg)

5.70 kg

Type

TeSys Giga

Type of electrical connection of main circuit

Bolt connection

Width

143

Rated control supply voltage AC 50 Hz

48…130 Volt

Rated control supply voltage AC 60 Hz

48…130 Volt

Rated operation power at AC-3, 400 V

110

Number of normally open contacts as main contact

4

Number of auxiliary contacts as normally closed contact

1

Number of auxiliary contacts as normally open contact

1

Modular version

FALSE

Operating voltage AC 50 Hz

1000 Volt

Depth

193

Operating voltage AC 60 Hz

1000 Volt

Rated operation power NEMA

150

Rated operation current Ie at AC-1, 400 V

330

Voltage type for actuating

AC/DC

Height

193

Rated operation current Ie at AC-4, 400 V

225

Rated control supply voltage DC

48…130 Volt

Rated operation power at AC-4, 400 V

110
