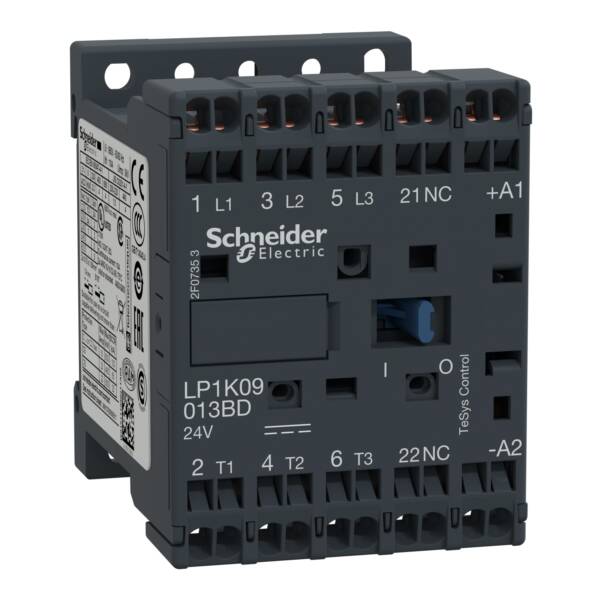

TeSys K contactor - 3P - AC-3 <= 440 V 9 A - 1 NC aux. - 24 V DC coil - Schneider Electric - LP1K09013BD
TeSys K contactor - 3P - AC-3 <= 440 V 9 A - 1 NC aux. - 24 V DC coil - Schneider Electric - LP1K09013BD

LP1K09013BD

TeSys K contactor - 3P - AC-3 <= 440 V 9 A - 1 NC aux. - 24 V DC coil - Schneider Electric - LP1K09013BD

Control

List Price £44.64 +VAT

Our Price £33.48 +VAT

SAVE 26% OFF List Price
Estimated delivery between 7-10 working days
Get in touch
TeSys K contactor, 3 poles (3NO), for motor control applications up to 9A/690V AC-3 (4kW@400V), and for non-inductive load control applications up to 10A/690V AC-1. It provides a 24V DC coil, 1NC built-in auxiliary contact, connection by spring terminals. For operating rates until 600 cycles/hour and environments until 50°C, it procures reliability and durability to standard applications. Very compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC),
Brand
Schneider Electric
Range
TeSys K contactors
Part No
LP1K09013BD
Weight (kg)
0.22 kg
Type
TeSys K contactors
Type of electrical connection of main circuit
Spring clamp connection
Rated operation power at AC-3, 400 V
4
Number of main contacts as normally open contact
3
Number of auxiliary contacts as normally closed contact
1
Modular version
FALSE
Rated operation current Ie at AC-1, 400 V
20
craft\elements\db\ElementQuery
DC
Rated operation current Ie at AC-3, 400 V
9
Rated control supply voltage Us at DC
24 V
Rated operation current Ie at AC-4, 400 V
6
Rated operation power at AC-4, 400 V
2.2

Datasheet for LP1K09013BD - TeSys K contactor - 3P - AC-3 <= 440 V 9 A - 1 NC aux. - 24 V DC coil - Schneider Electric - LP1K09013BD

Download
