GV5P220F

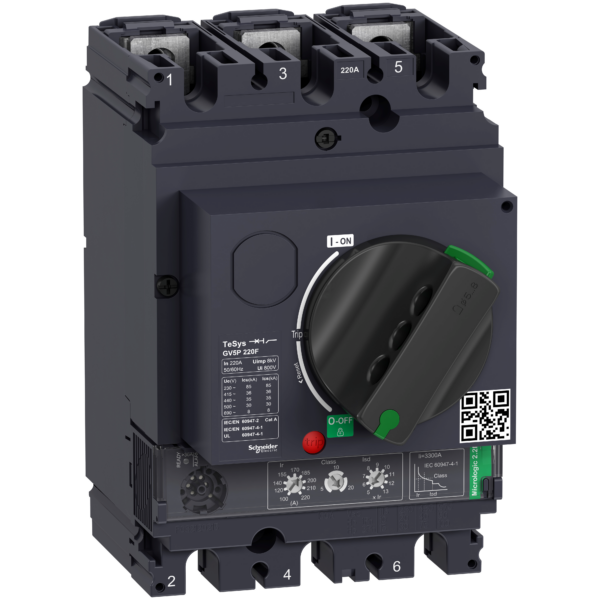

Motor circuit breaker, TeSys GV5, 3P, 220A, Icu 36kA, thermal magnetic - Schneider Electric - GV5P220F

Automation

~~List Price £834.41 +VAT~~

Our Price £625.81 +VAT

SAVE 25% OFF List Price

Fast Track Delivery Product

Get in touch

TeSys GV motor circuit breaker, 3 poles (3P), 220A/690V, for protection of 3-phase motors 90-110kW@400V. It provides thermal magnetic protection and additional protections, breaking capacity Icu 36kA, start-stop control by rotary handle, connection for bars or cables with lugs (direct connection of cables with additional connectors). Thermal protection adjustable by dials with a setting current Ir in range 100-220A and a selectable tripping class 5, 10 or 20, magnetic protection at 15 In. Additional protections with fixed pick-up include short time delay protection Isd at 13 Ir, phase unbalance and loss protection. It makes internal locations available for additional auxiliary contact blocks (OF, SD), and voltage trip units (MN, MX). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Brand: Schneider Electric
Range: TeSys Giga circuit-breakers
Part No: GV5P220F
Weight (kg): 2.19 kg
Type: TeSys GV5, GV6
