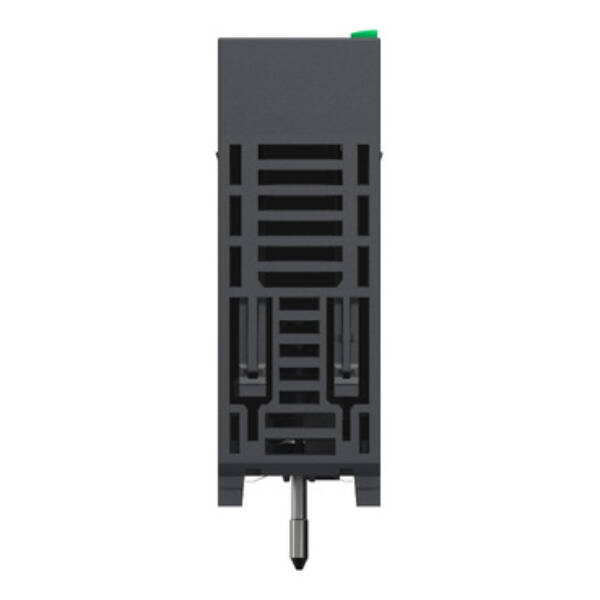

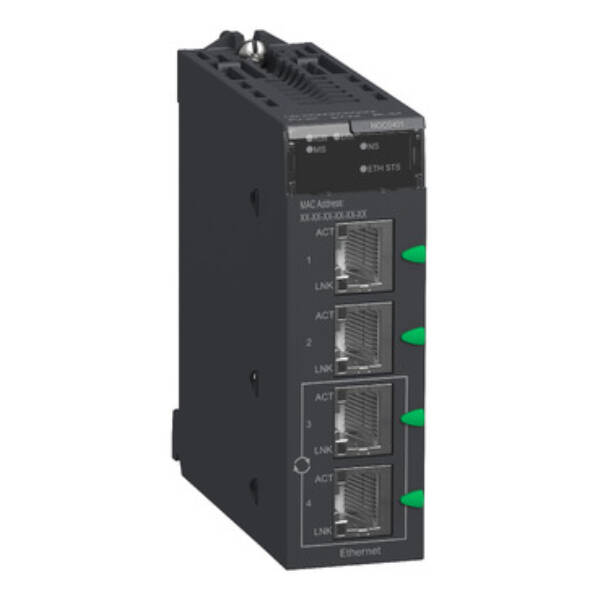

This Ethernet TCP/IP network module is part of the Modicon M340 range, an offer of Programmable Automation Controllers (PAC). This network module has 4 x RJ45 10/100Mbps connections. It is a module with a current consumption of 555mA at 3.3V DC, works with internal power supply. This product is robust, high quality and based on the latest innovative technology. Communication services are bandwidth management, data editor (via PC terminal), FDR server, rack viewer, SNMP network administrator, Modbus TCP I/O scanner and messaging, Ethernet/IP I/O scanner and messaging, embedded 4-port switch etc. It is an IP20 rated product. It weighs 0.2kg. It is suitable for process industries, renewable energies, water, cement, manufacturing, infrastructures and machines applications. This product is certified by CE, ODVA, UL. It meets UL 508, EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This module is compatible with Modicon M340 Programmable Logic Controllers (PLC), if equipped with a standard BMXP341000 processor or BMXP3420102, BMXP3420302, BMXP3420102CL, BMXP3420302CL Performance processor. It is delivered in 2 packages (PCE and SO2 types). Compact-shaped, Modicon M340 offers in small box flexibility and integrated functions. In the heart of process, it provides you plug and work solutions with both Schneider Electric and third party devices.

Brand

Schneider Electric

Range

Modicon M340

Part No

BMXNOC0401

Weight (kg)

0.22 kg

Type

Modicon M340

Supporting protocol for SERCOS

FALSE

With optical interface

FALSE

Transmission rate

100000

With potential separation

FALSE

Performance level acc. EN ISO 13849-1

None

Radio standard GPRS

FALSE

Height

100

Supporting protocol for INTERBUS-Safety

FALSE

Width

33

Redundancy

FALSE

Supporting protocol for AS-Interface Safety at Work

FALSE

Radio standard GSM

FALSE

Explosion safety category for dust

Other

Radio standard UMTS

FALSE

Depth

160

Explosion safety category for gas

Other

Supporting protocol for DeviceNet Safety

FALSE

Supporting protocol for EtherNet/IP

TRUE

Supporting protocol for Foundation Fieldbus

FALSE

Supporting protocol for SafetyBUS p

FALSE

Supporting protocol for PROFINET CBA

FALSE

Supporting protocol for PROFINET IO

FALSE

Supporting protocol for PROFIsafe

FALSE

Radio standard Bluetooth

FALSE

Supporting protocol for ASI

FALSE

Appendant operation agent (Ex ia)

FALSE

Radio standard WLAN 802.11

FALSE

Supporting protocol for PROFIBUS

FALSE

Type of data transmission

Other

Supporting protocol for TCP/IP

FALSE

Supporting protocol for KNX

FALSE

Supporting protocol for CAN

FALSE

Appendant operation agent (Ex ib)

FALSE

Supporting protocol for INTERBUS

FALSE

IO link master

FALSE

Supporting protocol for DeviceNet

FALSE

Supporting protocol for MODBUS

FALSE

Suitable for safety functions

FALSE

Supporting protocol for Data-Highway

FALSE

Supporting protocol for LON

FALSE

Supporting protocol for other bus systems

FALSE

Supporting protocol for SUCONET

FALSE

Number of HW-interfaces industrial Ethernet

1
