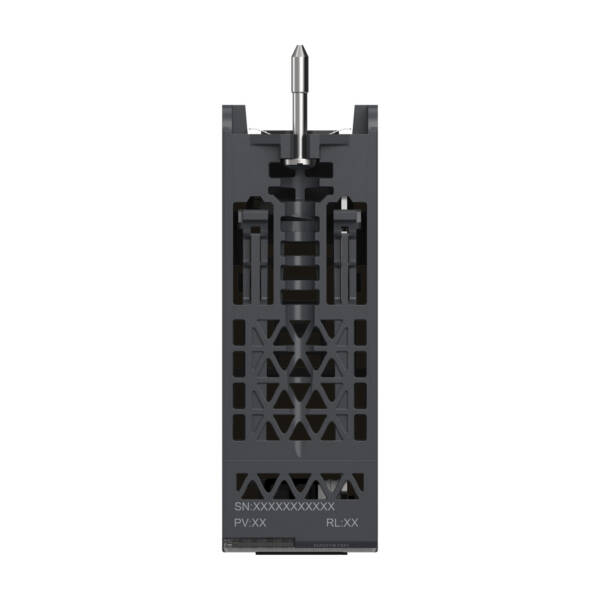

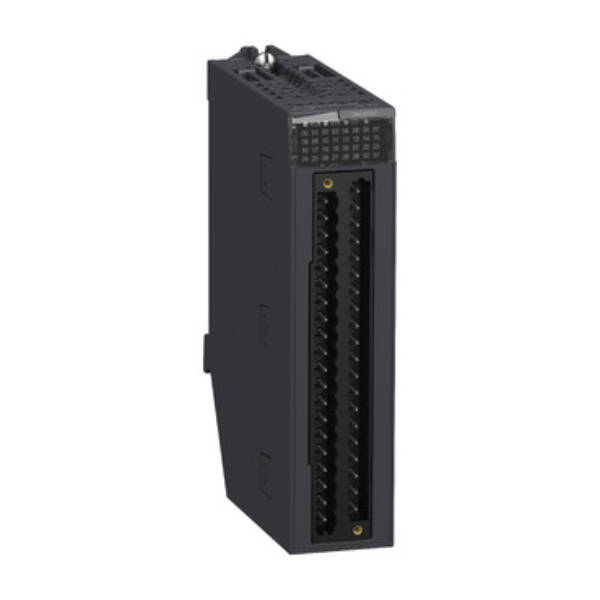

"This discrete triac output module is part of the Modicon X80 range, an offer of common input/output and communication modules, power supplies and racks for Modicon M340 and Modicon M580." "This product is composed of 16 output channels and it is supplied with 24 to 240V AC." "This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C/-13°F to 158°F." "Modicon X80 modules provide a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs." "This product is IP20 rated and offers 500837 hours of MTBF." "This discrete module has a weight of 0.250kg and dimensions of 32x131x86mm." "This product meets the needs of our customers from Smart Infrastructure, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Data centers and Power generation." "This product is certified by CE, UL, CSA, RCM, EAC, UKCA, Merchant Navy and meets EN 61000-6-5, EN 61850-3, EN 61131-2 standards." "This module is compatible with Modicon M340, M580 (Local or Remote I/O) PLCs with a 40-way caged or spring-type removable terminal block." "The product must be installed on the rack and fixed with 2 screws."

Brand

Schneider Electric

Range

Modicon X80 I/Os

Part No

BMXDAO1615H

Weight (kg)

0.41 kg

Type

Modicon X80 I/Os

Input current at signal 1

61

Type of electric connection

Plug-in connection

Output, current

3

Voltage type of supply voltage

AC

Short-circuit protection, outputs available

FALSE

SIL according to IEC 61508

None

Digital inputs configurable

FALSE

Type of digital output

Triac

Digital outputs configurable

TRUE

Permitted voltage at output

24…240 V

Appendant operation agent (Ex ia)

FALSE

Performance level acc. EN ISO 13849-1

None

Supply voltage AC 50 Hz

24…240 V

Permitted voltage at input

24…240 V

Supply voltage AC 60 Hz

24…240 V

Type of voltage (input voltage)

AC

Height

100

Time delay at signal exchange

0…1 ms

Appendant operation agent (Ex ib)

FALSE

Category according to EN 954-1

1

Type of output voltage

AC

Width

33

Suitable for safety functions

FALSE

Number of digital outputs

16

Redundancy

FALSE

Explosion safety category for dust

None

Depth

150

Explosion safety category for gas

None
