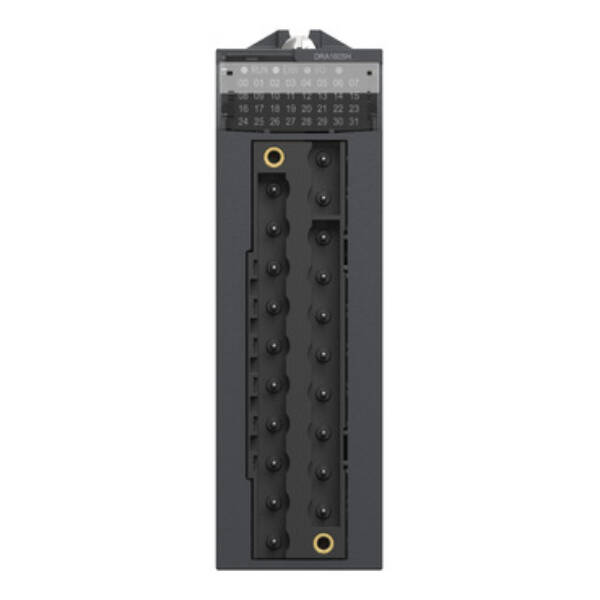

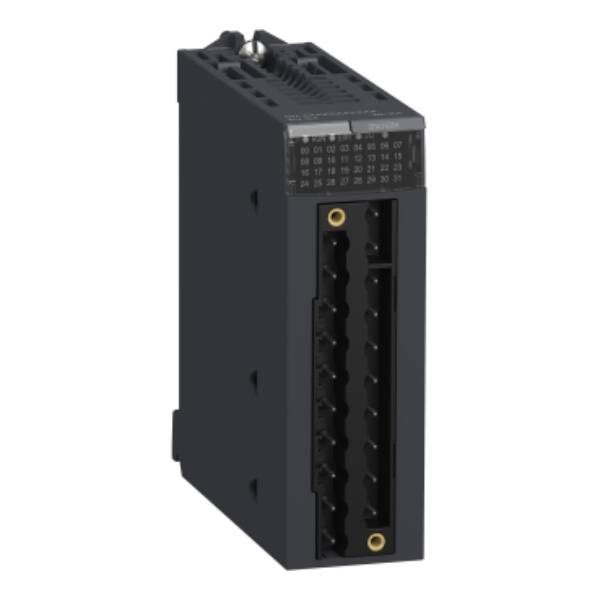

discrete output module X80 - 16O relay - 24VDC - 24..240VAC - severe environment - Schneider Electric - BMXDRA1605H

discrete output module X80 - 16O relay - 24VDC - 24..240VAC - severe environment - Schneider Electric - BMXDRA1605H

BMXDRA1605H

discrete output module X80 - 16O relay - 24VDC - 24..240VAC - severe environment - Schneider Electric - BMXDRA1605H

Automation

~~List Price £326.97 +VAT~~

Our Price £261.58 +VAT

SAVE 20% OFF List Price

Estimated delivery between 7-10 working days

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This discrete output module has 16 relay outputs. It is a discrete output module with an output voltage of 24V, 19V DC to 30V DC, 240V, 19V AC to 264V AC, a typical current consumption of 79mA at 3.3V DC. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C. It offers electrical durability of 100000, 300000, 50000, 7000 cycles and 1357810 hours of MTBF. It is an IP20 rated product. It weighs 0.15kg. It is suitable for severe environments, medium to large process applications. This product is certified by IEC-Ex, ATEX, EAC, Merchant Navy, CSA, RCM, CE and UL. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

Brand: Schneider Electric
Range: Modicon X80 I/Os
Part No: BMXDRA1605H
Weight (kg): 0.19 kg
Type: Modicon X80 I/Os
Input current at signal 1: 0.65
Output, current: 2
Type of electric connection: Plug-in connection
Short-circuit protection, outputs available: TRUE
Voltage type of supply voltage: AC/DC
SIL according to IEC 61508: None
Digital inputs configurable: FALSE
Type of digital output: Relay
Digital outputs configurable: TRUE
Performance level acc. EN ISO 13849-1: None
Permitted voltage at output: 24 V
Appendant operation agent (Ex ia): FALSE
Supply voltage AC 50 Hz: 24…240 V
Permitted voltage at input: 24 V
Supply voltage AC 60 Hz: 24…240 V
Type of voltage (input voltage): AC/DC
Height: 100
Time delay at signal exchange: 0…12 ms
Appendant operation agent (Ex ib): FALSE
Category according to EN 954-1: 1
Type of output voltage: AC/DC
Width: 33
Suitable for safety functions: FALSE
Number of digital outputs: 16
Redundancy: FALSE
Supply voltage DC: 24 V
Explosion safety category for dust: None
Depth: 150
Explosion safety category for gas: None

Datasheet for BMXDRA1605H - discrete output module X80 - 16O relay - 24VDC - 24..240VAC - severe environment - Schneider Electric - BMXDRA1605H

Download
