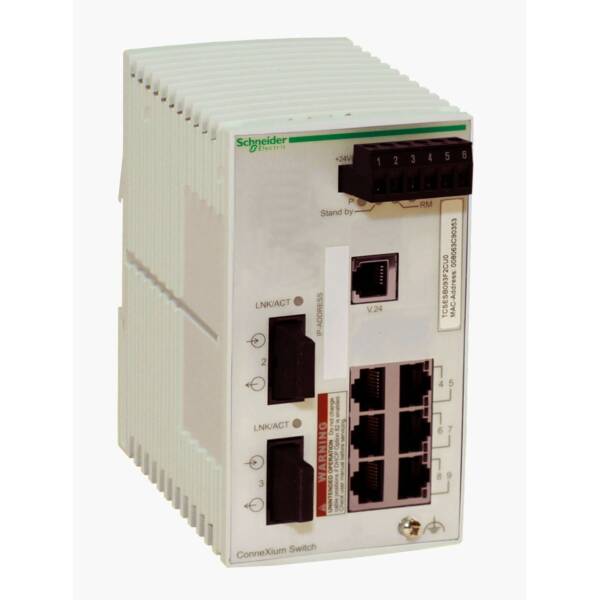

"This product is part of the Modicon Networking range, an offer of Modicon Basic Managed Switch." "This device comes with Ethernet TCP/IP protocol." "It comes with 6 copper cable transmission ports and 2 ports for multimode fiber optic." "It provides simple and complex connectivity for multiple Ethernet device." "This product works at a power consumption of 8W and a rated voltage from 12V to 24V DC." "It is furnished with 6-way removable connector (power supply) for electrical connection" "Its dimensions are 74mm (width) x 131mm (height) x 111mm (depth) and weighs 0.41 kg." "It has shielded connectors which are suitable for medium, isolated networks or system with medium network traffic and network with medium complexity levels." "It is CE, UL, RCM certified and conforms to UL 508 and EN/IEC 61131 standards." "It is designed to be mounted on a 35mm symmetrical DIN rail." "The Modicon Networking range offers you a smart and flexible way to integrate Ethernet solutions into your operation, from the device level to the control network and to your corporate network."

Brand

Schneider Electric

Range

Modicon Networking

Part No

TCSESB083F2CU0

Weight (kg)

0.60 kg

Type

Modicon Switch

Number of ports 10/100 Mbps RJ45

6

Redundant power supply

FALSE

Max. power consumption

8

Manageable

TRUE

Height

131

Degree of protection (IP)

IP20

Compatible with Grade2TV according to XP-C 90-483

FALSE

Compatible with Grade3TV according to XP-C 90-483

FALSE

Width

47

Number of ports 100 Mbps SC

2

Layer 2

FALSE

Layer 3

FALSE

Mounting method

DIN rail (top hat rail)

Depth

111

Power over Ethernet (PoE)

Other

Ethernet

FALSE
