controller M241 24 IO transistor PNP Ethernet CAN master - Schneider Electric - TM241CEC24T

controller M241 24 IO transistor PNP Ethernet CAN master - Schneider Electric - TM241CEC24T

TM241CEC24T

controller M241 24 IO transistor PNP Ethernet CAN master - Schneider Electric - TM241CEC24T

Automation

~~List Price £514.45 +VAT~~

Our Price £411.56 +VAT

SAVE 21% OFF List Price

Fast Track Delivery Product

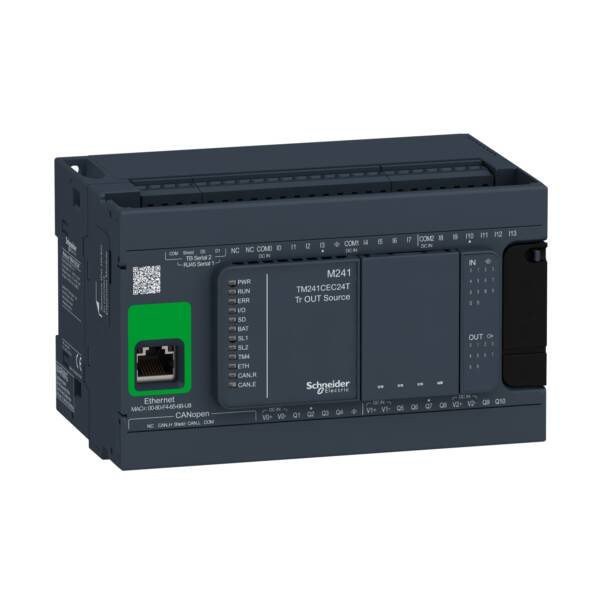

This TM241 controller is part of the Modicon M241 Logic controller range. It has 24 logic I/O and it is supplied with 24V dc. It is supplied with removable screw terminal blocks for connecting the I/O, a removable terminal block for connecting the power supply, a button cell backup battery BR2032. This M241 logic controller has 5 embedded communication ports, two serial links (RS232/RS485 and RS485) and USB mini-B programming port. It also has an Ethernet port and a CANopen port. It enables the control of simple movements or of control loops. The capacity of M221 logic controllers can be enhanced with the Modicon TM3 expansion module offer.

Brand: Schneider Electric
Range: Logic Controller - Modicon M241
Part No: TM241CEC24T
Weight (kg): 0.66 kg
Type: Logic Controller - Modicon M241
Supporting protocol for SERCOS: FALSE
Number of HW-interfaces USB: 1
SIL according to IEC 61508: None
With optical interface: FALSE
Additional program memory possible: TRUE
System accessory: FALSE
Performance level acc. EN ISO 13849-1: None
Radio standard GPRS: FALSE
Height: 90
Supporting protocol for INTERBUS-Safety: FALSE
Category according to EN 954-1: 1
Width: 150
Redundancy: FALSE
Supporting protocol for AS-Interface Safety at Work: FALSE
Explosion safety category for dust: None
Radio standard GSM: FALSE
Radio standard UMTS: FALSE
Depth: 95
Explosion safety category for gas: None
Supporting protocol for DeviceNet Safety: FALSE
Supporting protocol for EtherNet/IP: TRUE
Supporting protocol for Foundation Fieldbus: FALSE
With display: FALSE
Model: Compact
Supporting protocol for SafetyBUS p: FALSE
Processing time (1K, binary operation): 0.022
Voltage type of supply voltage: DC
Type of memory: NVRAM
Supporting protocol for PROFINET CBA: FALSE
Supporting protocol for PROFINET IO: FALSE
Memory size: 64000
Supporting protocol for PROFIsafe: FALSE
Supporting protocol for ASI: FALSE
Radio standard Bluetooth: FALSE
Appendant operation agent (Ex ia): FALSE
Radio standard WLAN 802.11: FALSE
Supporting protocol for PROFIBUS: FALSE
Supporting protocol for TCP/IP: TRUE
Front build in possible: FALSE
Supporting protocol for KNX: FALSE
Supporting protocol for CAN: TRUE
Appendant operation agent (Ex ib): FALSE
Supporting protocol for INTERBUS: FALSE
IO link master: FALSE
Rail mounting possible: TRUE
Supporting protocol for DeviceNet: FALSE
Suitable for safety functions: FALSE
Number of digital outputs: 10
Supporting protocol for MODBUS: TRUE
Supporting protocol for Data-Highway: FALSE
Number of digital inputs: 14
Supply voltage DC: 19.2…28.8 V
Rack-assembly possible: FALSE
Supporting protocol for LON: FALSE
Supporting protocol for other bus systems: FALSE
Supporting protocol for SUCONET: FALSE
Wall mounting/direct mounting: TRUE
Number of HW-interfaces RS-485: 2
Number of HW-interfaces industrial Ethernet: 1
Number of HW-interfaces RS-232: 2

Datasheet for TM241CEC24T - controller M241 24 IO transistor PNP Ethernet CAN master - Schneider Electric - TM241CEC24T

Download
