passive connection sub-base ABE7 - 16 inputs or outputs - Led - Schneider Electric - ABE7H16C11
passive connection sub-base ABE7 - 16 inputs or outputs - Led - Schneider Electric - ABE7H16C11

ABE7H16C11

passive connection sub-base ABE7 - 16 inputs or outputs - Led - Schneider Electric - ABE7H16C11

Automation

List Price £50.43 +VAT

Our Price £40.34 +VAT

SAVE 21% OFF List Price
Estimated delivery between 7-10 working days
Get in touch

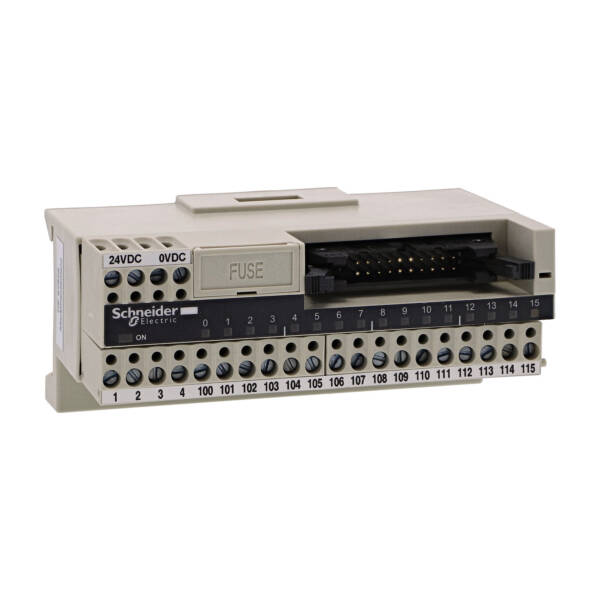

This product is part of the Modicon ABE7 range, an offer of connection sub-bases for Telefast pre-wired system. This miniature passive connection sub-base provides 16 modularity input/output channels. It has 1 terminal per channel. It is a sub base with a maximum supply current of 1.8A and a rated supply voltage of 19V to 30V. It is furnished with screw clamp terminals for electrical connection. It is an IP2x rated product. It weighs 0.16kg. It is suitable for all types of industrial applications. This product is certified by GL, BV, CSA, UL, DNV and LROS. The fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.
Brand
Schneider Electric
Range
Advantys Telefast ABE 7
Part No
ABE7H16C11
Weight (kg)
0.15 kg
Type
Advantys Telefast ABE 7
Number of sensor-/actuator-slots
1
Connection for NPN-sensors
FALSE
Max. current carrying capacity per socket
1.8
Operating voltage
24 V
Max. total current
1.8
Max. current carrying capacity per I/O signal
0.5
Number of poles sensor/actuator slots
16
Colour housing
Grey
Thread sleeves sensor/actuator slots
Other
Material of contact surface
Other
With potential separation
FALSE
Material contact body
Other copper alloys
Height
63
Degree of protection (IP)
IP2X
Connectable conductor cross section
0.09…2.5 mm²
Width
106
Rated voltage
24
Diameter contact female
2.5
Number of channels per connector slot
16
With LED indication
TRUE
Material housing
Plastic, metallized
Pollution degree
2
Explosion safety category for dust
None
Depth
64
Explosion safety category for gas
None
Cable length configurable
TRUE
Material insulation body
Other
Cable outer diameter for cable gland
0.09…2.5 mm
Type of branches for sensor-/actuator cables
Other
Operation temperature
-5…60 °C
Fix cable version suitable for cable guide chain
FALSE
