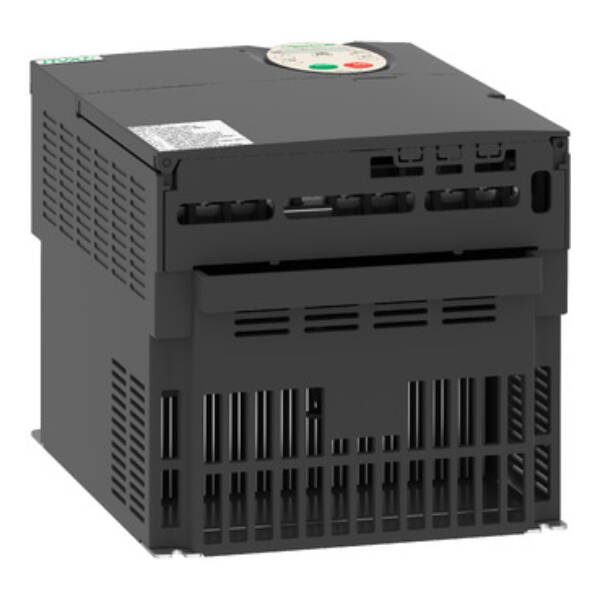

This Altivar 212 variable speed drive can feed 3-phase asynchronous motors. Its protection index is IP21 and it has a built-in EMC filter. It works at a rated power up to 7.5kW / 10hp and a rated voltage from 380V to 480V AC. Its design is based on eco-energy with a reduction in energy consumption of up to 70% compared to a conventional control system. Thanks to its cable temperature rise reduction technology, the Altivar 212 drive offers immediate, disturbance-free operation avoiding additional options such as a line choke or DC choke to deal with current harmonics. It weighs 6.45kg and its dimensions are, 180mm wide, 232mm high, 170mm deep. It is specifically designed for the most common fluid management applications in tertiary sector buildings (HVAC) like heating, ventilation, air conditioning and pumping. It conforms to international standards IEC/EN 61800-5-1 and IEC/EN 61800-3 (immunity and conducted and radiated EMC emissions). It is also CE, UL, CSA, C-Tick and NOM certified. The Altivar 212 offers optional motor chokes which can increase the maximum cable lengths between the drive and the motor and limit disturbance at the motor terminals. It is designed to be mounted in vertical position (+/- 10 °) on a panel, thanks to 4 fixing holes. The Altivar 212 drive can easily be adapted to all building management systems thanks to its numerous functions and communication protocols integrated as standard, Modbus, METASYS N2, APOGEE FLN P1 and BACnet. complies with directives such as RoHS, WEEE

Brand

Schneider Electric

Range

Altivar 212

Part No

ATV212HU75N4

Weight (kg)

6.11 kg

Type

Altivar 212

Supporting protocol for SERCOS

FALSE

With optical interface

FALSE

Type of converter

U converter

Mains voltage

380…480 Volt

Max. output frequency

200

Height

232

Supporting protocol for INTERBUS-Safety

FALSE

Mains frequency

50/60 Hz

Width

180

With control element

TRUE

With PC connection

TRUE

Supporting protocol for AS-Interface Safety at Work

FALSE

Number of phases input

3

Depth

170

Max. output at quadratic load at rated output voltage

7.5

Supporting protocol for DeviceNet Safety

FALSE

Supporting protocol for EtherNet/IP

FALSE

Supporting protocol for Foundation Fieldbus

FALSE

Max. output at linear load at rated output voltage

7.5

Supporting protocol for SafetyBUS p

FALSE

Number of phases output

3

Supporting protocol for PROFINET CBA

FALSE

Supporting protocol for PROFINET IO

FALSE

Supporting protocol for PROFIsafe

FALSE

Supporting protocol for ASI

FALSE

Relative symmetric net voltage tolerance

10

Supporting protocol for PROFIBUS

FALSE

Relative symmetric net frequency tolerance

5

Supporting protocol for TCP/IP

FALSE

Supporting protocol for KNX

FALSE

Application in domestic- and commercial area permitted

TRUE

Degree of protection (IP)

IP21

Supporting protocol for CAN

FALSE

Supporting protocol for INTERBUS

FALSE

Integrated breaking resistance

FALSE

Application in industrial area permitted

TRUE

Supporting protocol for BACnet

FALSE

Supporting protocol for DeviceNet

FALSE

Supporting protocol for Modbus

TRUE

Supporting protocol for Data-Highway

FALSE

Number of digital inputs

3

Number of analogue outputs

1

4-quadrant operation possible

FALSE

Number of analogue inputs

2

Supporting protocol for LON

TRUE

Supporting protocol for other bus systems

TRUE

Supporting protocol for SUCONET

FALSE

Number of HW-interfaces RS-485

1

Nominal output current I2N

16

Max. output voltage

480
