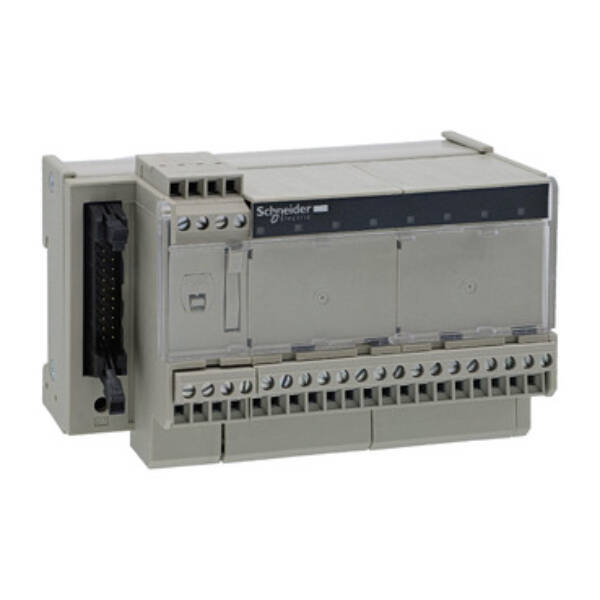

"This product is part of the Modicon ABE7 range, an offer of connection sub-bases for pre-wired system." "This is a sub-base with fixed relays for 8 channels, an integral NO contact and common, with 2 terminals per channel." "Its control circuit voltage is 24VDC." "It provides a digital output control function." "It is furnished with removable screw terminal for electrical connection, with a 20-way HE10 connector, and electromechanical relays." "The tightening torque of wiring is 0.6N.m with flat diameter 3.5mm screwdriver." "It is a relay output sub-base with IP20 degree of protection. It weighs 0.448kg." 0 "It is suitable into any types of industrial applications needing rapid connection of I/O modules (digital, analog, and counter) to operative parts." "This product is certified by DNV, CSA, UL, GL and EAC." "It is suitable for use with Modicon M221 Book, TSX Micro and Modicon Premium controllers, Modicon TM3 and X80 I/O expansion modules." "It is delivered in 1 package (PCE type)." "Its fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit)." "Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment."

Brand

Schneider Electric

Range

Advantys Telefast ABE 7

Part No

ABE7R08S210

Weight (kg)

0.35 kg

Type

Advantys Telefast ABE 7

Colour

Grey

Type of electrical connection 2

Plug-in connection

Type of electrical connection 1

Screw connection

Rated voltage

24

Number of clamp positions per pole

2

Inflammability class of insulation material according to with UL94

Other

Halogen free

FALSE

Drill hole distance centrically

10

Mounting method

Other

Connectable conductor cross section solid-core

0.324 Square millimetre

Closing plate required

FALSE

Explosion-tested version 'Ex e'

FALSE

Material insulation body

Other

Number of poles

16

Operating temperature

-5…60 Degrees celsius

Transparent

FALSE

Rated current In

0.09
