Composition of IO(TM5NCO1)+term block(TM5ACTB12PS)+base(TM5ACBN1)+power(TM5SPS3) - Schneider Electric - TM5NCO1K
Composition of IO(TM5NCO1)+term block(TM5ACTB12PS)+base(TM5ACBN1)+power(TM5SPS3) - Schneider Electric - TM5NCO1K

TM5NCO1K

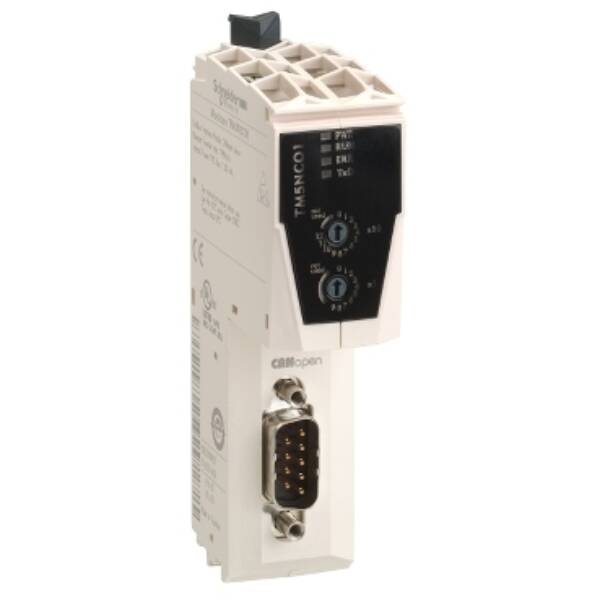

Composition of IO(TM5NCO1)+term block(TM5ACTB12PS)+base(TM5ACBN1)+power(TM5SPS3) - Schneider Electric - TM5NCO1K

Automation

List Price £267.12 +VAT

Our Price £213.70 +VAT

SAVE 20% OFF List Price
Fast Track Delivery Product
Get in touch
This product is part of the Modicon TM5 range, an High-Performance and Safe IP20 Modular I/O System. This is a kit comprising a bus coupler designed for creating distributed IO islands on CANopen fieldbus, exchanging data between controller and distributed IO. This kit is comprising a CANopen interface module, a bus base, a power distribution electronic module and a terminal block. This kit is designed for creating distributed IO islands on the Canopen fieldbus. Its access method is based on CSMA-MA, multi-master protocol. It is furnished with removable spring terminal block for electrical connection. It is an IP20 rated product. The housing colour is white. It weighs 0.12kg. The Modicon TM5 meets the typical requirements of production and packaging machinery, as well as material handling and assembly systems. This product is certified by GOST-R, C-Tick, cULus and CSA. It meets IEC 61131-2, UL 508, CSA C22.2 No 213 and CSA C22.2 No 142 standards. It is compatible with Modicon M258 logic controllers, Modicon LMC058/LMC078 motion controllers. The kit includes bus sub-base TM5ACBN1, terminal block TM5ACTB12PS, CANopen module TM5NCO1 and power supply unit TM5SPS3. It is installed by mounting on a 35mm DIN rail. This modular IO system provides a flexible and scalable configuration of remote or distributed IO islands by connection with Modicon and PacDrive 3 controllers. Flexible and scalable, designed for complex machines.
Brand
Schneider Electric
Range
Modicon TM5 IP20 modular I/O system
Part No
TM5NCO1K
Weight (kg)
0.25 kg
Type
Modicon TM5 IP20 modular I/O system
Supporting protocol for SERCOS
FALSE
SIL according to IEC 61508
None
With optical interface
FALSE
Transmission rate
1000
Performance level acc. EN ISO 13849-1
None
With potential separation
FALSE
Radio standard GPRS
FALSE
Height
99
Supporting protocol for INTERBUS-Safety
FALSE
Width
37.5
Redundancy
FALSE
Supporting protocol for AS-Interface Safety at Work
FALSE
Explosion safety category for dust
None
Radio standard GSM
FALSE
Radio standard UMTS
FALSE
Depth
75
Explosion safety category for gas
None
Supporting protocol for DeviceNet Safety
FALSE
Supporting protocol for EtherNet/IP
FALSE
Supporting protocol for Foundation Fieldbus
FALSE
Supporting protocol for SafetyBUS p
FALSE
Supporting protocol for PROFINET CBA
FALSE
Supporting protocol for PROFINET IO
FALSE
Supporting protocol for PROFIsafe
FALSE
Supporting protocol for ASI
FALSE
Radio standard Bluetooth
FALSE
Supporting protocol for PROFIBUS
FALSE
Appendant operation agent (Ex ia)
FALSE
Radio standard WLAN 802.11
FALSE
Type of data transmission
Other
Supporting protocol for TCP/IP
FALSE
Supporting protocol for KNX
FALSE
Appendant operation agent (Ex ib)
FALSE
Supporting protocol for CAN
TRUE
IO link master
FALSE
Supporting protocol for INTERBUS
FALSE
Supporting protocol for DeviceNet
FALSE
Supporting protocol for MODBUS
FALSE
Suitable for safety functions
FALSE
Supporting protocol for Data-Highway
FALSE
Supporting protocol for LON
FALSE
Supporting protocol for other bus systems
FALSE
Supporting protocol for SUCONET
FALSE

Datasheet for TM5NCO1K - Composition of IO(TM5NCO1)+term block(TM5ACTB12PS)+base(TM5ACBN1)+power(TM5SPS3) - Schneider Electric - TM5NCO1K
