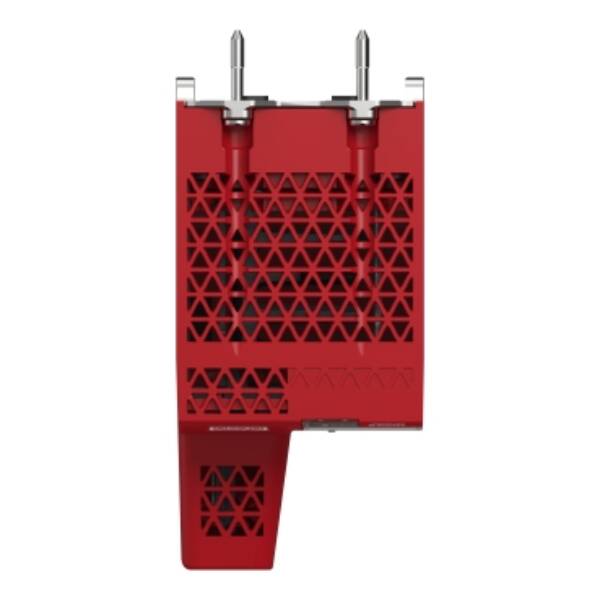

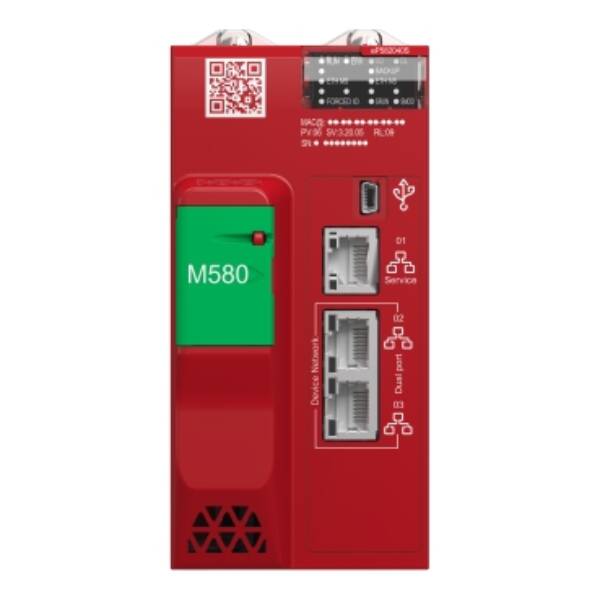

"This standalone Safety processor is part of the Modicon M580 range, an offer of Programmable Automation Controllers (PAC) and safety Programmable Logic Controllers (PLC) with built-in Ethernet." "This product offers a maximum of 4 local rack and 8 remote rack configuration with up to 10240 discrete I/O channels and 2560 analog I/O channels." "This Safety product is coated and is compatible with a temperature range from -25°C to +60°C/-13°F to 140°F." "This controller can help hybrid manufacturers to achieve better, measurable, earlier ROI and Up to 100% returns on their project investments in less than three months." "It is equipped with 1 Ethernet port for service, 2 Ethernet ports for ring remote I/O network (Remote IO racks only) and 1 USB type mini B for programming console." "It has an integrated RAM of 8MB for program, 768kb for data, 10kb for system memory, expandable flash of 4GB for data storage and 2MB for program Safety and 512kb for data Safety. This product is IP20 rated and offers 767536 hours of MTBF." "This red module has a weight of 0.849kg and dimensions of 64x130x135mm." 0 "This module meets the needs of applications in Transportation, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Power generation, Energies and Chemicals, and Data centers." "This product complies with CE, UL, CSA, RCM, EAC, UKCA, ATEX/IECEx zone 2/22, and TUV/IEC61508/SIL3 standards and is certified for Power Generation, Merchant Navy, Railway and Hazardous areas applications." "The CPU must be installed in the rack slots marked 00 and 01, with 2 screws on top of the CPU to maintain the module on the rack." "This product can be used in combination with Modicon X80 (I/O, backplane, cable) and works with the EcoStruxure Control Expert programming software." "Modicon M580 improves reliability and sustainability, as well as productivity with high performance and increases operating profitability due to efficient access to data."

Brand

Schneider Electric

Range

Modicon M580 - ePac

Part No

BMEP582040S

Weight (kg)

0.88 kg

Type

Modicon M580 - ePac

Supporting protocol for IEC 60870

FALSE

Supporting protocol for DNP3

FALSE

Supporting protocol for SERCOS

FALSE

Number of HW-interfaces USB

1

SIL according to IEC 61508

3

Additional program memory possible

TRUE

System accessory

TRUE

Performance level according to EN ISO 13849-1

Level e

Certified for UL hazardous location division 2

TRUE

Radio standard GPRS

FALSE

Height

89

Supporting protocol for INTERBUS-Safety

FALSE

Certified for UL hazardous location class I

TRUE

Certified for UL hazardous location class III

FALSE

Certified for UL hazardous location division 1

FALSE

Certified for UL hazardous location class II

FALSE

Width

180

Supporting protocol for EtherCAT

FALSE

Redundancy

TRUE

Supporting protocol for AS-Interface Safety at Work

TRUE

Radio standard GSM

FALSE

Explosion safety category for dust

Other

Radio standard UMTS

FALSE

Depth

250

Explosion safety category for gas

Other

Supporting protocol for DeviceNet Safety

FALSE

Supporting protocol for EtherNet/IP

TRUE

Supporting protocol for Foundation Fieldbus

FALSE

Certified for UL hazardous location group C (ethylene)

FALSE

Certified for UL hazardous location group A (acetylene)

FALSE

Certified for UL hazardous location group B (hydrogen)

FALSE

Certified for UL hazardous location group F (carbonaceous dusts)

FALSE

Certified for UL hazardous location group G (non-conductive dusts)

FALSE

Certified for UL hazardous location group D (propane)

FALSE

Certified for UL hazardous location group E (metal dusts)

FALSE

With display

FALSE

Supporting protocol for SafetyBUS p

FALSE

Model

Modular

Voltage type (supply voltage)

DC

Type of memory

RAM

Long-Term Evolution (LTE)

FALSE

Supporting protocol for PROFINET CBA

FALSE

Supporting protocol for PROFINET IO

FALSE

Supporting protocol for PROFIsafe

FALSE

Memory size

10

Supporting protocol for ASI

TRUE

Radio standard Bluetooth

FALSE

Radio standard WLAN 802.11

FALSE

Supporting protocol for PROFIBUS

FALSE

Appendant operation agent (Ex ia)

FALSE

Supporting protocol for TCP/IP

TRUE

Front built-in possible

FALSE

Supporting protocol for KNX

FALSE

Supporting protocol for CAN

FALSE

IO link master

FALSE

Supporting protocol for INTERBUS

FALSE

Supporting protocol for IEC 61850 Ethernet

TRUE

Supporting protocol for DeviceNet

FALSE

Rail mounting possible

TRUE

Supporting protocol for Modbus

TRUE

Suitable for safety functions

TRUE

Supporting protocol for Data-Highway

FALSE

Supply voltage DC

24 Volt

Rack-assembly possible

TRUE

Supporting protocol for LON

FALSE

Supporting protocol for other bus systems

FALSE

Supporting protocol for SUCONET

FALSE

Wall mounting/direct mounting

TRUE

Number of HW-interfaces industrial Ethernet

3
