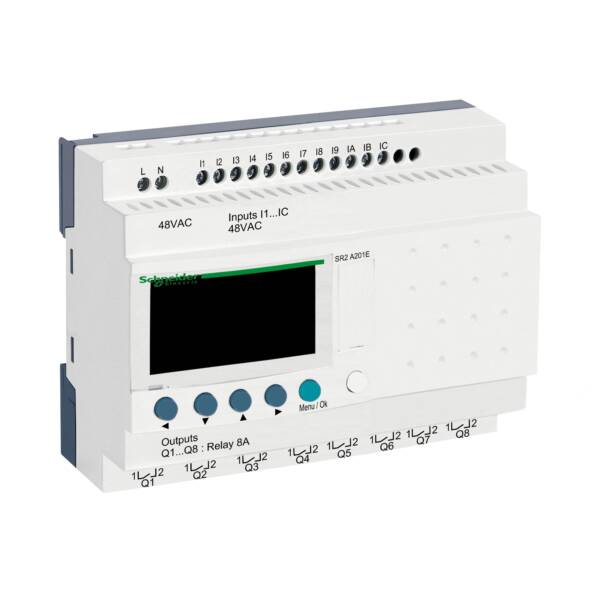

compact smart relay Zelio Logic - 20 I O - 48 V AC - no clock - display - Telemecanique - SR2A201E

SR2A201E

compact smart relay Zelio Logic - 20 I O - 48 V AC - no clock - display - Telemecanique - SR2A201E

Automation

List Price £259.71 +VAT

Our Price £207.77 +VAT

SAVE 20% OFF List Price
Estimated delivery between 7-10 working days
Get in touch
This Zelio Logic SR2 compact smart relay / programmable controller uses a supply voltage of 48V alternating current. It has 20 inputs / outputs with screw-clamp terminals and has an integrated LCD display. It has compact design, allowing installation on DIN rail. It also offers simple programming, display and diagnosing of malfunctions display and navigation buttons. Its simple ladder programming makes it adapted for non-specialists.
Brand
Telemecanique
Range
Smart Relays - Zelio Logic
Part No
SR2A201E
Weight (kg)
0.37 kg
Type
Smart Relays - Zelio Logic
Expandable
FALSE
Supporting protocol for SERCOS
FALSE
Number of HW-interfaces other
1
SIL according to IEC 61508
None
With optical interface
FALSE
Performance level acc. EN ISO 13849-1
None
Basic device
TRUE
Radio standard GPRS
FALSE
With relay output
TRUE
Height
90
Supporting protocol for INTERBUS-Safety
FALSE
Category according to EN 954-1
1
Width
124.6
Redundancy
FALSE
Supporting protocol for AS-Interface Safety at Work
FALSE
Explosion safety category for dust
None
Radio standard GSM
FALSE
Radio standard UMTS
FALSE
Depth
59.5
Explosion safety category for gas
None
Supporting protocol for DeviceNet Safety
FALSE
Supporting protocol for EtherNet/IP
FALSE
Supporting protocol for Foundation Fieldbus
FALSE
Expansion device
FALSE
With display
TRUE
Supporting protocol for SafetyBUS p
FALSE
Voltage type of supply voltage
AC
With timer
FALSE
Supporting protocol for PROFINET CBA
FALSE
Supporting protocol for PROFINET IO
FALSE
Supporting protocol for PROFIsafe
FALSE
Supporting protocol for ASI
FALSE
Radio standard Bluetooth
FALSE
Appendant operation agent (Ex ia)
FALSE
Supporting protocol for PROFIBUS
FALSE
Radio standard WLAN 802.11
FALSE
Supply voltage AC 50 Hz
48 V
Front build in possible
TRUE
Supply voltage AC 60 Hz
48 V
Supporting protocol for TCP/IP
FALSE
Supporting protocol for KNX
FALSE
Appendant operation agent (Ex ib)
FALSE
Supporting protocol for CAN
FALSE
Degree of protection (IP)
IP20
IO link master
FALSE
Supporting protocol for INTERBUS
FALSE
Supporting protocol for DeviceNet
FALSE
Rail mounting possible
TRUE
Number of digital outputs
8
Suitable for safety functions
FALSE
Switching current
8
Supporting protocol for MODBUS
FALSE
Number of digital inputs
12
Supporting protocol for Data-Highway
FALSE
Rack-assembly possible
FALSE
Supporting protocol for LON
FALSE
Supporting protocol for other bus systems
FALSE
Supporting protocol for SUCONET
FALSE
Wall mounting/direct mounting
TRUE
Number of HW-interfaces RS-232
1
