LRD3653

TeSys LRD thermal overload relays - 48...65 A - class 10A - Schneider Electric - LRD3653

Automation

~~List Price £149.91 +VAT~~

Our Price £112.43 +VAT

SAVE 26% OFF List Price

Estimated delivery between 7-10 working days

Get in touch

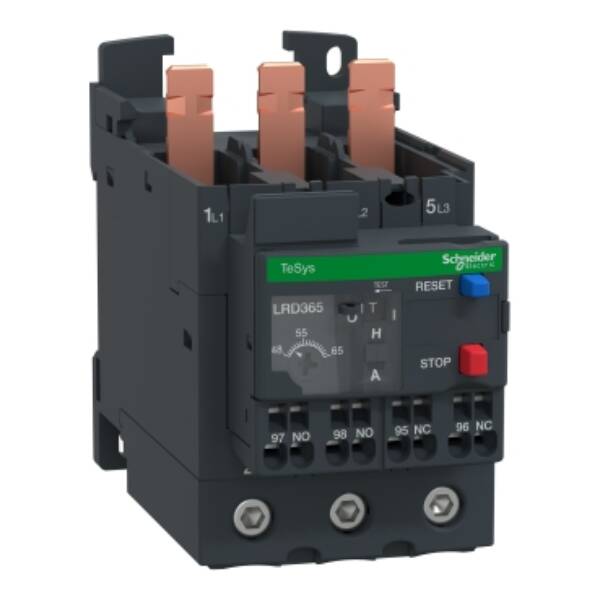

TeSys LRD thermal overload relay, 65A/690V, thermal setting range 48-65A, tripping class 10A, for protection of 3-phase motors 30kW@400V. Differential device with phase failure and load unbalance detection. It provides a thermal adjustement dial, a manual-automatic reset selector, a test selector for simulation of a tripping, reset and stop buttons, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by EverLink BTR screw terminals , it connects directly to the bottom terminals of 3-pole contactors LC1D40A-D80A. Mounting on DIN rail or screw fixing, separated from the contactor, with use of a terminal block LAD96560 (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHs/Reach).

Brand: Schneider Electric
Range: TeSys Deca overload relays
Part No: LRD3653
Weight (kg): 0.41 kg
Type: TeSys Deca overload relays
