compact smart relay Zelio Logic - 20 I O - 12 VDC - clock - display - Schneider Electric - SR2B201JD
compact smart relay Zelio Logic - 20 I O - 12 VDC - clock - display - Schneider Electric - SR2B201JD

SR2B201JD

compact smart relay Zelio Logic - 20 I O - 12 VDC - clock - display - Telemecanique - SR2B201JD

Automation

List Price £247.64 +VAT

Our Price £198.11 +VAT

SAVE 21% OFF List Price
Estimated delivery between 7-10 working days
Get in touch

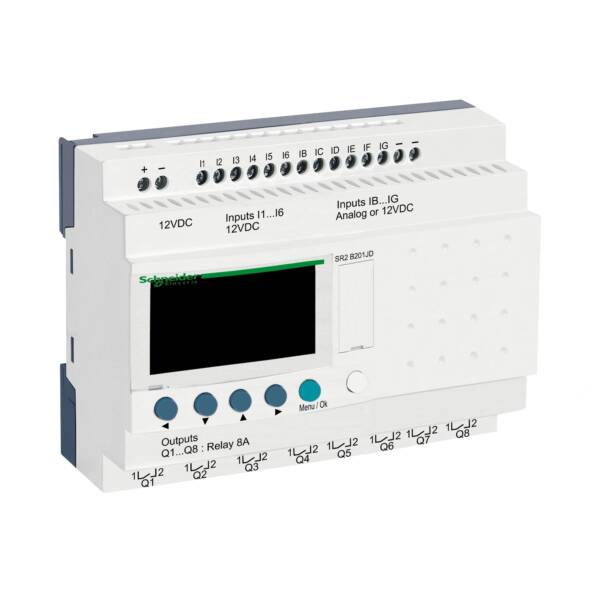

This product is part of Smart Relay - Zelio Logic SR2/SR3, an offer of simple automation systems from 10 to 40 I/Os. This Zelio Logic compact smart relay features 20 I/Os, local display, 0 to 240 with ladder and 0 to 500 with FBD programming control scheme lines. It is a module with rated supply voltage of 12V DC and cycle time of 6ms to 90ms. It offers 12 resistive discrete inputs with voltage of 12V DC, 6 analogue input ranges from 0V to 10V, 0V to 12V and 8 relay outputs. It is an IP20 and IP40 rated product. It weighs 0.38kg. The main application of this module is industry and building/service sector. This product is certified by C-Tick, GL, UL, CSA and GOST. It meets EN/IEC 60068-2-6 Fc and EN/IEC 61000-4-11 standards. Easy to use, Zelio Logic provides a real alternative solutions based on cabled logic or specific cards.
Brand
Schneider Electric
Range
Smart Relays - Zelio Logic
Part No
SR2B201JD
Weight (kg)
0.36 kg
Type
Smart Relays - Zelio Logic
Expandable
FALSE
Supporting protocol for SERCOS
FALSE
Number of HW-interfaces other
1
SIL according to IEC 61508
None
With optical interface
FALSE
Performance level acc. EN ISO 13849-1
None
Basic device
TRUE
Radio standard GPRS
FALSE
With relay output
TRUE
Height
90
Supporting protocol for INTERBUS-Safety
FALSE
Category according to EN 954-1
1
Width
124.6
Redundancy
FALSE
Supporting protocol for AS-Interface Safety at Work
FALSE
Radio standard GSM
FALSE
Explosion safety category for dust
None
Radio standard UMTS
FALSE
Depth
59.5
Explosion safety category for gas
None
Supporting protocol for DeviceNet Safety
FALSE
Supporting protocol for EtherNet/IP
FALSE
Supporting protocol for Foundation Fieldbus
FALSE
Expansion device
FALSE
With display
TRUE
Supporting protocol for SafetyBUS p
FALSE
Voltage type of supply voltage
DC
With timer
TRUE
Supporting protocol for PROFINET CBA
FALSE
Supporting protocol for PROFINET IO
FALSE
Supporting protocol for PROFIsafe
FALSE
Radio standard Bluetooth
FALSE
Supporting protocol for ASI
FALSE
Supporting protocol for PROFIBUS
FALSE
Radio standard WLAN 802.11
FALSE
Appendant operation agent (Ex ia)
FALSE
Front build in possible
TRUE
Supporting protocol for TCP/IP
FALSE
Supporting protocol for KNX
FALSE
Degree of protection (IP)
IP20
Appendant operation agent (Ex ib)
FALSE
Supporting protocol for CAN
FALSE
IO link master
FALSE
Supporting protocol for INTERBUS
FALSE
Supporting protocol for DeviceNet
FALSE
Rail mounting possible
TRUE
Switching current
8
Supporting protocol for MODBUS
FALSE
Number of digital outputs
8
Suitable for safety functions
FALSE
Number of digital inputs
12
Supporting protocol for Data-Highway
FALSE
Supply voltage DC
12 V
Number of analogue inputs
6
Rack-assembly possible
FALSE
Supporting protocol for LON
FALSE
Supporting protocol for other bus systems
FALSE
Supporting protocol for SUCONET
FALSE
Wall mounting/direct mounting
TRUE
Number of HW-interfaces RS-232
1

Datasheet for SR2B201JD - compact smart relay Zelio Logic - 20 I O - 12 VDC - clock - display - Schneider Electric - SR2B201JD
