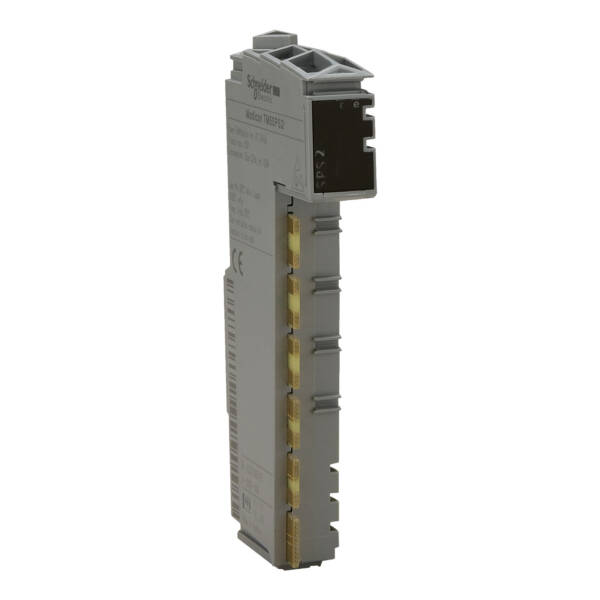

This product is part of the Modicon TM5 range, an High-Performance and Safe IP20 Modular I/O System. The is a power distribution module is suitable for supply 24V DC I/O modules and bus TM5. It is a power distribution module with a current consumption of 25mA 24V DC and a maximum power dissipation of 1.91W. This product is part of a flexible and scalable I/O configuration for automation solutions. It has a short-circuit protection with 10A external fuse. It is an IP20 rated product. The housing colour is grey. It weighs 0.03kg. The Modicon TM5 meets the typical requirements of production and packaging machinery, as well as material handling and assembly systems. This product is certified by GOST-R, C-Tick, cULus and CSA. It meets IEC 61131-2, UL 508, CSA C22.2 No 213 and CSA C22.2 No 142 standards. It is compatible with Modicon M258 and Modicon LMC058 controllers. It is installed by mounting on a 35mm DIN rail. This modular IO system provides a flexible and scalable configuration of remote or distributed IO islands by connection with Modicon and PacDrive 3 controllers. Flexible and scalable, designed for complex machines.

Brand

Schneider Electric

Range

Modicon TM5 IP20 modular I/O system

Part No

TM5SPS2

Weight (kg)

0.05 kg

Type

Modicon TM5 IP20 modular I/O system

Bus diagnosis possible

FALSE

Supporting protocol for SERCOS

FALSE

SIL according to IEC 61508

None

With optical interface

FALSE

System accessory

FALSE

With potential separation

FALSE

Performance level according to EN ISO 13849-1

None

Certified for UL hazardous location division 2

FALSE

Radio standard GPRS

FALSE

Height

99

Fieldbus connection over separate bus coupler possible

FALSE

Supporting protocol for INTERBUS-Safety

FALSE

Certified for UL hazardous location class I

FALSE

Certified for UL hazardous location class III

FALSE

Certified for UL hazardous location division 1

FALSE

Certified for UL hazardous location class II

FALSE

Width

12.5

Supporting protocol for EtherCAT

FALSE

Supporting protocol for AS-Interface Safety at Work

FALSE

With power supply module

FALSE

Explosion safety category for dust

None

Radio standard GSM

FALSE

Radio standard UMTS

FALSE

Depth

75

Explosion safety category for gas

None

Supporting protocol for DeviceNet Safety

FALSE

Supporting protocol for EtherNet/IP

FALSE

Supporting protocol for Foundation Fieldbus

FALSE

Certified for UL hazardous location group C (ethylene)

FALSE

Certified for UL hazardous location group A (acetylene)

FALSE

Certified for UL hazardous location group B (hydrogen)

FALSE

Certified for UL hazardous location group F (carbonaceous dusts)

FALSE

Certified for UL hazardous location group G (non-conductive dusts)

FALSE

Certified for UL hazardous location group D (propane)

FALSE

Certified for UL hazardous location group E (metal dusts)

FALSE

Supporting protocol for SafetyBUS p

FALSE

Type of electric connection

Screw-/spring clamp connection

Voltage type (supply voltage)

DC

Supporting protocol for PROFINET CBA

FALSE

Supporting protocol for PROFINET IO

FALSE

Supporting protocol for PROFIsafe

FALSE

Radio standard Bluetooth

FALSE

Supporting protocol for ASI

FALSE

Appendant operation agent (Ex ia)

FALSE

Supporting protocol for PROFIBUS

FALSE

Radio standard WLAN 802.11

FALSE

Front built-in possible

FALSE

Supporting protocol for TCP/IP

FALSE

Supporting protocol for KNX

FALSE

Degree of protection (IP)

IP20

Appendant operation agent (Ex ib)

FALSE

Supporting protocol for CAN

FALSE

Supporting protocol for INTERBUS

FALSE

Suitable as segment module

FALSE

Supporting protocol for DeviceNet

FALSE

Rail mounting possible

TRUE

Suitable for safety functions

FALSE

Supporting protocol for Modbus

FALSE

Supporting protocol for Data-Highway

FALSE

Supply voltage DC

24 Volt

Rack-assembly possible

FALSE

Supporting protocol for LON

FALSE

Supporting protocol for other bus systems

FALSE

Supporting protocol for SUCONET

FALSE

Wall mounting/direct mounting

FALSE

Remote module

FALSE
