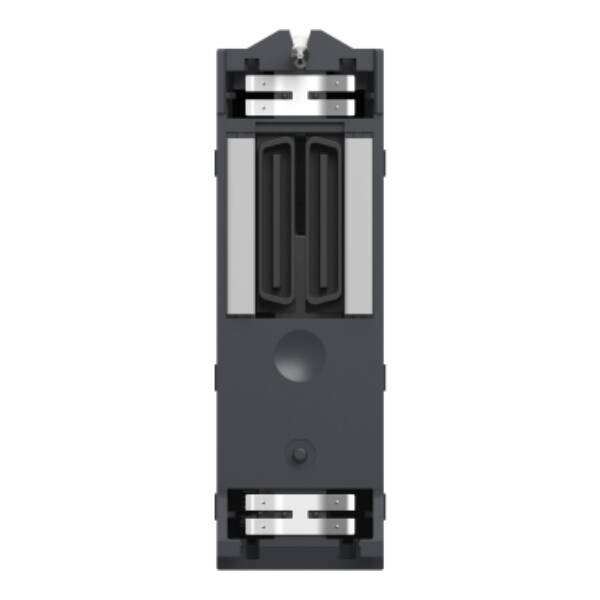

Communication module, Modicon M580, IEC 61850 - Schneider Electric - BMENOP0300

Communication module, Modicon M580, IEC 61850 - Schneider Electric - BMENOP0300

BMENOP0300

Communication module, Modicon M580, IEC 61850 - Schneider Electric - BMENOP0300

Automation

~~List Price £3,621.49 +VAT~~

Our Price £2,897.19 +VAT

SAVE 21% OFF List Price

Estimated delivery between 7-10 working days

This communication module is part of the Modicon M580 range, an offer of PACs with built-in Ethernet and communication modules. This communication module offers ethernet cable for transmission support medium with 10Mbps and 100Mbps transmission rate. It is interfaced with 3 Ethernet 10/100BASE-TX. This communication module enables M580 platform to proceed to IEC 61850-compliant data exchange. It features MMS messaging client for IEC 61850, MMS messaging server for IEC 61850, Goose for IEC 61850, Modbus TCP messaging, RSTP support etc. It weighs 0.24kg. It is suitable for medium to large process applications. It is compatible with M580 PAC. Modicon M580 improves reliability and sustainability, as well as productivity with high performance and increases operating profitability due to efficient access to data. Modicon M580 ePAC is the controller which can help hybrid manufacturers achieve better, measurable and earlier ROI.

Brand: Schneider Electric
Range: Modicon M580 - ePac
Part No: BMENOP0300
Weight (kg): 0.25 kg
Type: Modicon M580 - ePac
Supporting protocol for SERCOS: FALSE
SIL according to IEC 61508: None
With optical interface: FALSE
Transmission rate: 100000
With potential separation: FALSE
Performance level acc. EN ISO 13849-1: None
Radio standard GPRS: FALSE
Height: 120
Supporting protocol for INTERBUS-Safety: FALSE
Width: 35
Redundancy: FALSE
Supporting protocol for AS-Interface Safety at Work: FALSE
Explosion safety category for dust: None
Radio standard GSM: FALSE
Radio standard UMTS: FALSE
Depth: 120
Explosion safety category for gas: None
Supporting protocol for DeviceNet Safety: FALSE
Supporting protocol for EtherNet/IP: TRUE
Supporting protocol for Foundation Fieldbus: FALSE
Supporting protocol for SafetyBUS p: FALSE
Supporting protocol for PROFINET CBA: FALSE
Supporting protocol for PROFINET IO: FALSE
Supporting protocol for PROFIsafe: FALSE
Supporting protocol for ASI: FALSE
Radio standard Bluetooth: FALSE
Appendant operation agent (Ex ia): FALSE
Radio standard WLAN 802.11: FALSE
Supporting protocol for PROFIBUS: FALSE
Type of data transmission: Other
Supporting protocol for TCP/IP: TRUE
Supporting protocol for KNX: FALSE
Supporting protocol for CAN: FALSE
Appendant operation agent (Ex ib): FALSE
Supporting protocol for INTERBUS: FALSE
IO link master: FALSE
Supporting protocol for DeviceNet: FALSE
Supporting protocol for MODBUS: TRUE
Suitable for safety functions: FALSE
Supporting protocol for Data-Highway: FALSE
Supporting protocol for LON: FALSE
Supporting protocol for other bus systems: FALSE
Supporting protocol for SUCONET: FALSE
Number of HW-interfaces industrial Ethernet: 3

Datasheet for BMENOP0300 - Communication module, Modicon M580, IEC 61850 - Schneider Electric - BMENOP0300

Download
