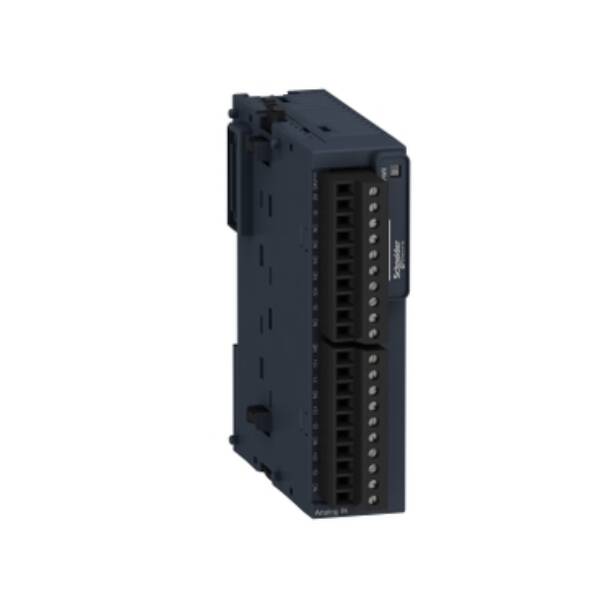

"This product is part of Modicon TM3, a range of expansion I/O modules for Modicon plcs." "This analogue input module provides 4 inputs with 16bit and 15bit + sign resolution." "It is an input module with a 24VDC rated supply voltage, a current consumption of 45mA/50mA at 5VDC via bus connector, 35mA/40mA at 24VDC via external supply." "It transfers input signals such as push-buttons, switches, temperature sensors to the plc." "There is an insulation between input and supply at 1500VAC, input and internal logic at 500VAC. It works via a 24VDC external power supply." "It is furnished with a removable screw terminal for electrical connection with pitch 3.81mm adjustment for inputs and supply." "It is an IP20-rated product. Its dimensions are 23.6mm wide, 70mm deep and 90mm high. It weighs 0.110kg" "It is designed to detect the status of input signals such as push-buttons, switches, temperature sensors." "This product is certified by CULus, CE, UKCA, RCM, EAC, and cULus HazLoc." "This module is compatible with Modicon M262/M241/M251/M221 logic controllers and is configurable with EcoStruxure machine expert software." "It is delivered in 1 package (PCE type)." "It is mounted on a symmetrical DIN rail. Or with a specific kit for plate or panel mounting." "The specially developed Modicon TM3 I/O system enables flexible and customizable expansion of the I/O terminals in all the controllers." "From design and development to commissioning and maintenance, EcoStruxure Machine Expert is a complete machine-building solution."

Brand

Schneider Electric

Range

Modicon TM3

Part No

TM3TI4D

Weight (kg)

0.22 kg

Type

Modicon TM3

Supporting protocol for SERCOS

FALSE

Analogue inputs configurable

TRUE

Analogue outputs configurable

FALSE

SIL according to IEC 61508

None

System accessory

FALSE

Performance level according to EN ISO 13849-1

None

Certified for UL hazardous location division 2

FALSE

Radio standard GPRS

FALSE

Height

90

Fieldbus connection over separate bus coupler possible

FALSE

Supporting protocol for INTERBUS-Safety

FALSE

Certified for UL hazardous location class I

FALSE

Certified for UL hazardous location class III

FALSE

Certified for UL hazardous location division 1

FALSE

Certified for UL hazardous location class II

FALSE

Width

23.6

Supporting protocol for EtherCAT

FALSE

Supporting protocol for AS-Interface Safety at Work

FALSE

Explosion safety category for dust

None

Radio standard GSM

FALSE

Radio standard UMTS

FALSE

Depth

70

Explosion safety category for gas

None

Supporting protocol for DeviceNet Safety

FALSE

Supporting protocol for EtherNet/IP

FALSE

Supporting protocol for Foundation Fieldbus

FALSE

Certified for UL hazardous location group C (ethylene)

FALSE

Certified for UL hazardous location group A (acetylene)

FALSE

Certified for UL hazardous location group B (hydrogen)

FALSE

Certified for UL hazardous location group F (carbonaceous dusts)

FALSE

Certified for UL hazardous location group G (non-conductive dusts)

FALSE

Certified for UL hazardous location group D (propane)

FALSE

Certified for UL hazardous location group E (metal dusts)

FALSE

Input, thermocouple

TRUE

Input signal, configurable

FALSE

Type of electric connection

Screw connection

Supporting protocol for SafetyBUS p

FALSE

Voltage type (supply voltage)

DC

Input, resistor

TRUE

Supporting protocol for PROFINET CBA

FALSE

Input, resistance thermometer

FALSE

Supporting protocol for PROFINET IO

FALSE

Input, current

TRUE

Input, voltage

TRUE

Supporting protocol for PROFIsafe

FALSE

Radio standard Bluetooth

FALSE

Supporting protocol for ASI

FALSE

Radio standard WLAN 802.11

FALSE

Supporting protocol for PROFIBUS

FALSE

Appendant operation agent (Ex ia)

FALSE

Supporting protocol for TCP/IP

FALSE

Front built-in possible

FALSE

Supporting protocol for KNX

FALSE

Supporting protocol for CAN

FALSE

Appendant operation agent (Ex ib)

FALSE

Degree of protection (IP)

IP20

IO link master

FALSE

Supporting protocol for INTERBUS

FALSE

Rail mounting possible

TRUE

Output, voltage

FALSE

Supporting protocol for DeviceNet

FALSE

Output signal configurable

FALSE

Supporting protocol for Modbus

FALSE

Suitable for safety functions

FALSE

Output, current

FALSE

Resolution of the analogue inputs

16

Supporting protocol for Data-Highway

FALSE

Supply voltage DC

24 Volt

Rack-assembly possible

FALSE

Number of analogue inputs

4

Supporting protocol for LON

FALSE

Power consumption

1.1

Supporting protocol for other bus systems

FALSE

Supporting protocol for SUCONET

FALSE

Wall mounting/direct mounting

FALSE

Degree of protection (NEMA)

2
