passive connection sub-base, Modicon ABE7, 16 inputs or outputs, wiring kit,  cable 2m - Schneider Electric - ABE7H34E200
passive connection sub-base, Modicon ABE7, 16 inputs or outputs, wiring kit,  cable 2m - Schneider Electric - ABE7H34E200

ABE7H34E200

passive connection sub-base, Modicon ABE7, 16 inputs or outputs, wiring kit, cable 2m - Schneider Electric - ABE7H34E200

Automation

List Price £191.43 +VAT

Our Price £153.14 +VAT

SAVE 21% OFF List Price
Estimated delivery between 7-10 working days
Get in touch

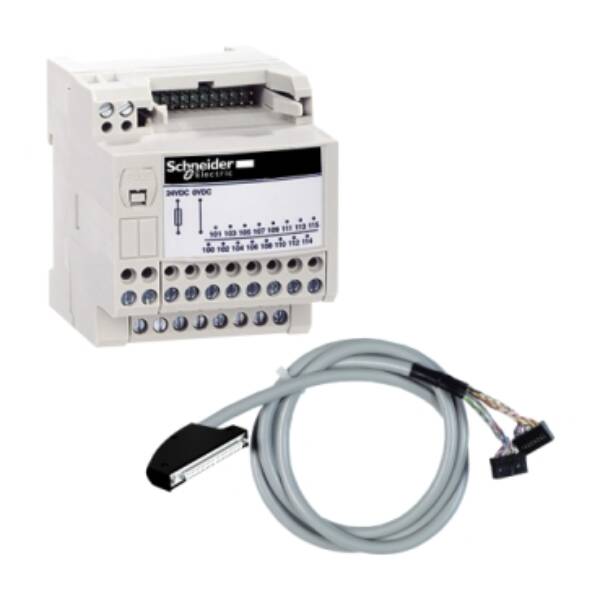

"This product is part of the Modicon ABE7 range, an offer of connection sub-bases for Telefast pre-wired system." "This is a kit containing two sub-bases and a 2meter long Y-cordset." "Sub-bases provide 2x16 modularity input/output channels with 1 terminal per channel. Y-cordset is equipped with 1x 40-way FCN, and 2x HE10 20-way connectors." "This product is designed to simplify I/O connection to a PLC within a control panel, and connects to channels with HE 10 and SUB-D connectors." "It is a sub base with a maximum supply current of 1.8A and a rated supply voltage of 19V to 30V" "It is furnished with screw clamp terminals for electrical connection. It is an IP2x rated product." "This kit weighs 0.725kg." "It is suitable for all types of industrial applications managed with Modicon X80 I/O modules or Modicon M340 controllers." "This kit is certified by GL, CSA, DNV, BV, LROS, UL, GL and EAC." "This kit is compatible with Modicon X80 I/O modules or Modicon M340 controllers." "The fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit)." "Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment." "Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors."
Brand
Schneider Electric
Range
Advantys Telefast ABE 7
Part No
ABE7H34E200
Weight (kg)
0.75 kg
Type of electrical accessory
Other
Type of mechanical accessory
Other

Datasheet for ABE7H34E200 - passive connection sub-base, Modicon ABE7, 16 inputs or outputs, wiring kit, cable 2m - Schneider Electric - ABE7H34E200
