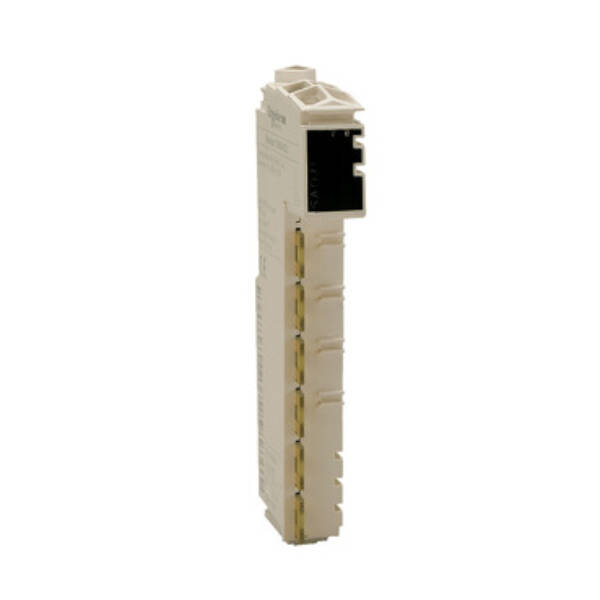

This product is part of the Modicon TM5 range, an High-Performance and Safe IP20 Modular I/O System. The analogue input module provides 2 inputs with 16bit resolution. It is an input module with a rated supply voltage of 24V DC and a current consumption of 2mA at 5V DC bus, 46mA at 24V DC input/output. This product is part of a flexible and scalable I/O configuration for automation solutions. There is an insulation between channel and bus at 500Vrms AC and no insulation between channels. It has a Pt 100/Pt 1000 temperature probe of 850°C input type with internal supply. It is an IP20 rated product. It weighs 0.025kg. The Modicon TM5 meets the typical requirements of production and packaging machinery, as well as material handling and assembly systems. This product is certified by GOST-R, C-Tick, cULus and CSA. It meets IEC 61131-2, UL 508, CSA C22.2 No 213 and CSA C22.2 No 142 standards. This product is compatible with Modicon LMC058 motion controller and Modicon M258 logic controller. It is installed by mounting on a 35mm DIN rail. This modular IO system provides a flexible and scalable configuration of remote or distributed IO islands by connection with Modicon and PacDrive 3 controllers. Flexible and scalable, designed for complex machines.

Brand

Schneider Electric

Range

Modicon TM5 IP20 modular I/O system

Part No

TM5SAI2PH

Weight (kg)

0.04 kg

Type

Modicon TM5 IP20 modular I/O system

Input, thermocouple

TRUE

Input signal, configurable

TRUE

Type of electric connection

Spring clamp connection

Analogue inputs configurable

TRUE

Analogue outputs configurable

FALSE

SIL according to IEC 61508

None

Input, resistor

FALSE

Input, resistance thermometer

TRUE

Input, current

FALSE

Input voltage

FALSE

Appendant operation agent (Ex ia)

FALSE

Performance level acc. EN ISO 13849-1

None

Height

99

Appendant operation agent (Ex ib)

FALSE

Category according to EN 954-1

1

Width

12.5

Output voltage

FALSE

Resolution of the analogue outputs

12

Output signal configurable

FALSE

Suitable for safety functions

TRUE

Output, current

FALSE

Resolution of the analogue inputs

16

Explosion safety category for dust

Other

Number of analogue inputs

2

Depth

75

Explosion safety category for gas

Other
