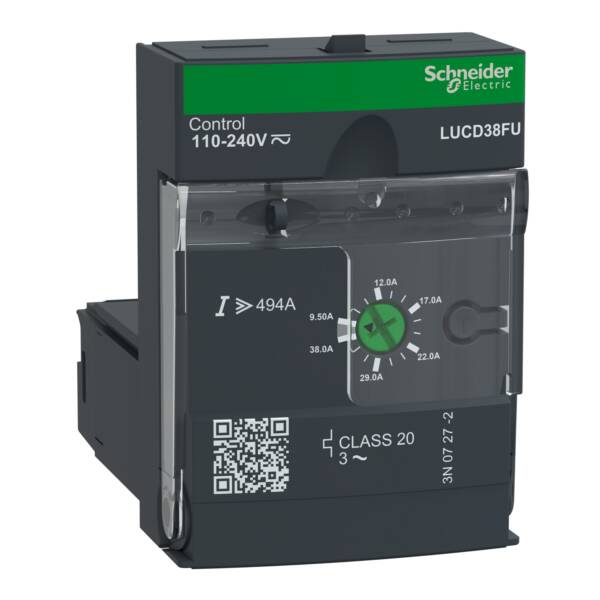

Advanced control unit, TeSys U, 9.5-38A, 3P motors, protection & diagnostic, class 20, coil 110-240V AC/DC - Schneider Electric - LUCD38FU

Advanced control unit, TeSys U, 9.5-38A, 3P motors, protection & diagnostic, class 20, coil 110-240V AC/DC - Schneider Electric - LUCD38FU

LUCD38FU

Advanced control unit, TeSys U, 9.5-38A, 3P motors, protection & diagnostic, class 20, coil 110-240V AC/DC - Schneider Electric - LUCD38FU

Control

~~List Price £200.71 +VAT~~

Our Price £150.53 +VAT

SAVE 26% OFF List Price

Estimated delivery between 7-10 working days

TeSys U control and diagnostic unit to be inserted in advanced power bases LUB380 to form a TeSys U starter controller, for 3-phase motor applications up to 18.5kW@400V. It provides full protection to motors with a rated current Ir 9.5-38A (Ir adjustable), overload tripping class 20, short circuit at 13 x Irmax, overcurrent at 14.2 x Ir, phase loss, insulation fault (protection of equipment only). It provides a thermal overload alarm to be used locally using a LUFDA module or remotely using a LULC module, and a test push button for overload simulation. To be used with a 110-240V AC / 110-220V DC voltage for the control of the starter (through the control terminals A1/A2 located in the power base). Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine),

Brand: Schneider Electric
Range: TeSys Ultra
Part No: LUCD38FU
Weight (kg): 0.13 kg
Type: TeSys U
Width: 45
With ground fault protection function: TRUE
Voltage type (supply voltage): AC/DC
Overload release current setting: 9.5…38 Ampere
Operating voltage AC 50 Hz: 690 Volt
Rated permanent current Iu: 38
Depth: 60
Operating voltage AC 60 Hz: 690 Volt
Short-circuit release function: Undelayed
Type of motor protection: Electronic release
Number of poles: 3
Voltage type (operating voltage): AC
External power supply required: TRUE
Height: 66

Datasheet for LUCD38FU - Advanced control unit, TeSys U, 9.5-38A, 3P motors, protection & diagnostic, class 20, coil 110-240V AC/DC - Schneider Electric - LUCD38FU

Download
