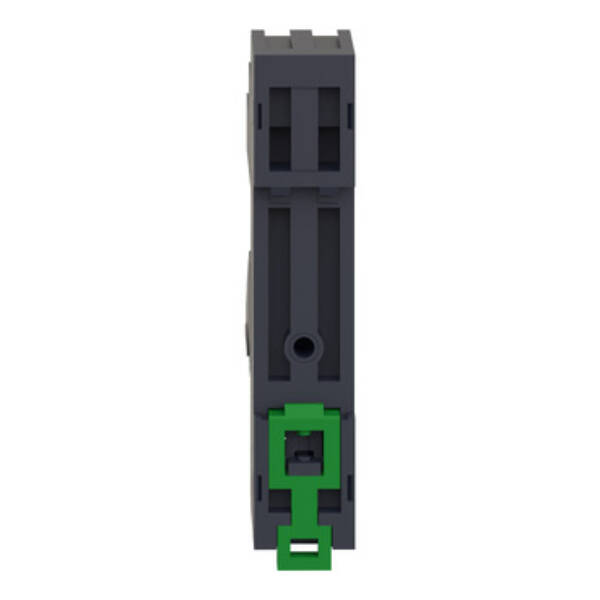

This interface Plug-In relay belongs to the Schneider Electric Harmony electromechanical relays range. This is a pre-assembled relay mounted on a separate contact terminal socket with integrated clamp and a varistor protection module. This is a 5A, 230Vac, 2 CO interface mechanical relay. This pre-mounted relay is a ready-to-go package saving assembly time. The relay offers single-step lockable test button. The interface relay socket connection is by screw connector type. This pre-assembled relay weighs 0.067Kg. Its design fit for industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltage switchgear, motor controls, PLC Interfaces, power supplies, building or medical equipment, lighting controls. Product and conforms to international standard and certifications like IEC, UL, EAC, CSA, ROHS and REACH. It is sold in lots of 30. The RXG plug-in relays are a series of industrial plug-in relays designed for both simple and complex automation systems and available with 1 CO (10A) and 2 CO (5A) contacts.

Brand

Schneider Electric

Range

Harmony Electromechanical Relays

Part No

RXG21P7PV

Weight (kg)

0.07 kg

Type

Harmony Electromechanical Relays

Width

15

Rated control supply voltage Us at AC 50HZ

0…230 V

Rated control supply voltage Us at AC 60HZ

0…230 V

Type of electric connection

Plug-in connection

Drive, switching attitude

Mono stable

With forced-guided contacts

FALSE

Nominal current

5

Drive, polarization

Polarity free

With LED indication

FALSE

Type of switch contact

Other

Depth

72

Complete with socket

TRUE

Number of contacts as change-over contact

2

Voltage type for actuating

AC

Height

79

Degree of protection (IP)

IP20

With detachable clamps

TRUE
