XUSL2E30H091N

XUSL type 2 Hand protection - Std sensing range - Hp = 910 mm, R=30mm - Telemecanique Sensors - XUSL2E30H091N

Automation

~~List Price £1,399.79 +VAT~~

Our Price £1,049.84 +VAT

SAVE 26% OFF List Price

Estimated delivery between 7-10 working days

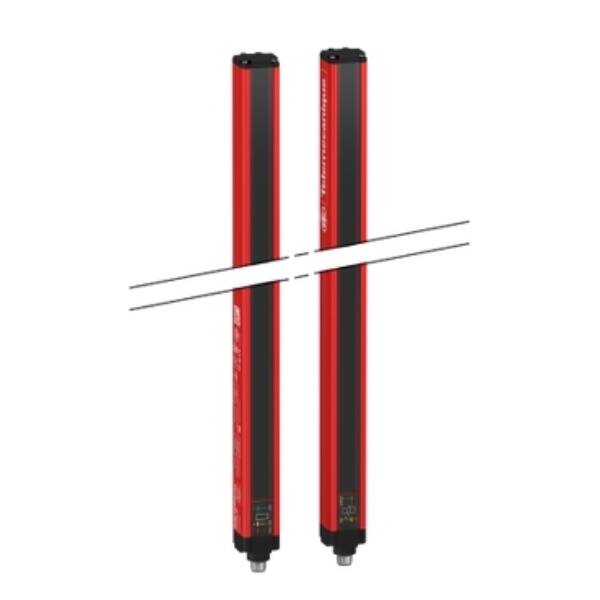

This XUSL2E Type 2 Safety Light Curtain is designed for hand detection of operator in the vicinity of hazardous machinery. Its transmitter-receiver system creates 46 light beams with a protected height of 910mm. Its PFHD reliability data is 5.19 x 10⁻⁸. It has an aluminum case and its integral LEDs offer a local Signaling for clearly display of device's status. It can be used as standalone sensor (i.e without safety control unit) or in association with an appropriate safety control unit. It has 2 NO Solid State PNP safety outputs (OSSDs) and meets the requirements of category 2, performance level PL c, SIL 1 as described in EN/ISO 13849-1, EN/IEC 61508 and Type 2 in compliance with EN/IEC 61496-1, EN/IEC 61496-2. Its operating temperature range is -30°C to +55°C and the sensing distance is 0m to 4m or 0m to 12m selectable by wiring.

Brand: Telemecanique Sensors
Range: Safety light curtains XUSL
Part No: XUSL2E30H091N
Weight (kg): 3.56 kg
Type: Safety light curtains XUSL
