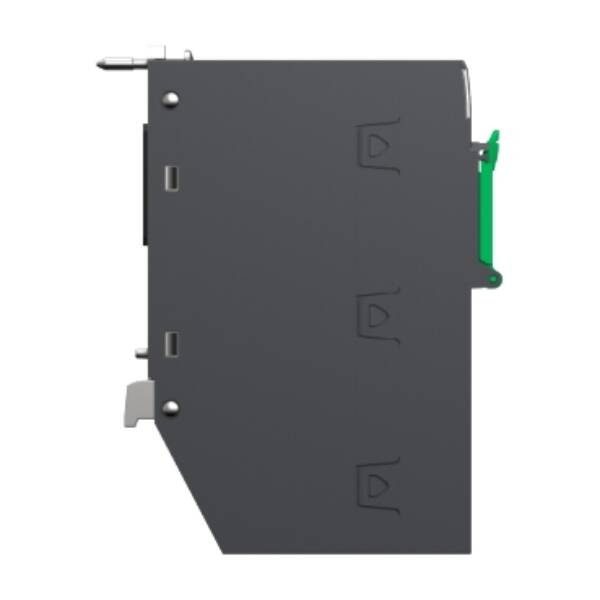

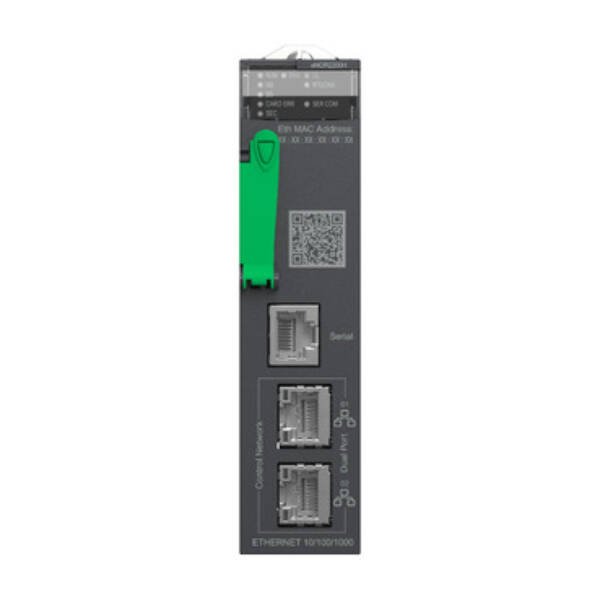

This product is part of the Modicon M580 range, an offer of Programmable Automation Controllers (PAC) and safety Programmable Logic Controllers (PLC) with built-in Ethernet. This communication module enables M580 platform to use RTU protocol exchange with RTU stations. It features enhanced cybersecurity. It complies with M580 Hot Standby system. It supports up to 64 devices when module acts as Client/Master. It weighs 0.345kg. It provides enhanced cybersecurity. It complies with DNP3 NET IEC60870-5-104 RTU protocol. The module is delivered in 1 packing unit. It occupies one slot on the rack. Modicon X80 is a platform of modules common to Modicon M580 and M340 automation platforms that reduces maintenance and training costs with same spare parts in stock, and unique training for various Programmable Automation Controllers (PAC). Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

Brand

Schneider Electric

Range

Modicon M580 - ePac

Part No

BMENOR2200H

Weight (kg)

0.52 kg

Type

Modicon M580 - ePac

Supporting protocol for SERCOS

FALSE

SIL according to IEC 61508

None

With optical interface

FALSE

Transmission rate

100000

Performance level acc. EN ISO 13849-1

None

With potential separation

FALSE

Radio standard GPRS

FALSE

Height

135

Supporting protocol for INTERBUS-Safety

FALSE

Width

32

Redundancy

FALSE

Supporting protocol for AS-Interface Safety at Work

FALSE

Explosion safety category for dust

None

Radio standard GSM

FALSE

Radio standard UMTS

FALSE

Depth

86

Explosion safety category for gas

None

Supporting protocol for DeviceNet Safety

FALSE

Supporting protocol for EtherNet/IP

FALSE

Supporting protocol for Foundation Fieldbus

FALSE

Supporting protocol for SafetyBUS p

FALSE

Supporting protocol for PROFINET CBA

FALSE

Supporting protocol for PROFINET IO

FALSE

Supporting protocol for PROFIsafe

FALSE

Radio standard Bluetooth

FALSE

Supporting protocol for ASI

FALSE

Supporting protocol for PROFIBUS

FALSE

Radio standard WLAN 802.11

FALSE

Type of data transmission

Module rack extension

Supporting protocol for TCP/IP

TRUE

Supporting protocol for KNX

FALSE

Supporting protocol for CAN

FALSE

Supporting protocol for INTERBUS

FALSE

IO link master

FALSE

Supporting protocol for DeviceNet

FALSE

Suitable for safety functions

FALSE

Supporting protocol for MODBUS

TRUE

Supporting protocol for Data-Highway

FALSE

Supporting protocol for LON

FALSE

Supporting protocol for other bus systems

FALSE

Supporting protocol for SUCONET

FALSE

Number of HW-interfaces RS-485

1

Number of HW-interfaces industrial Ethernet

3

Number of HW-interfaces RS-232

1
