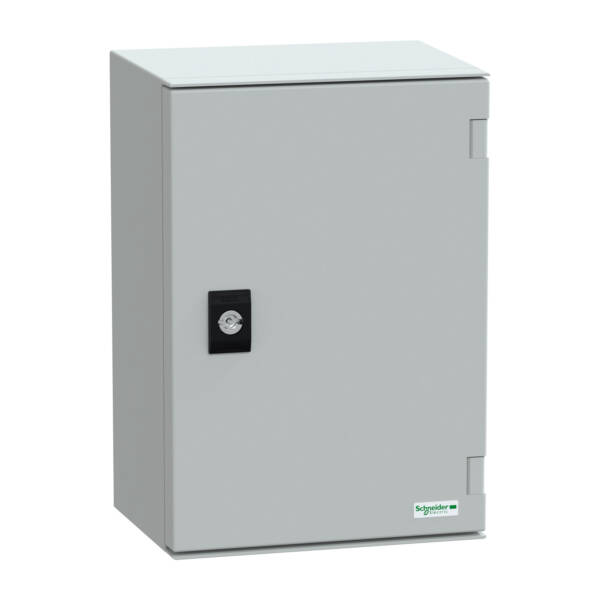

This PLM is a wall-mounted enclosure from the PanelSeT range that is suitable for multi-purpose applications The enclosure has a nominal height, width, and depth of 310 mm, 215 mm, and 160 mm, respectively It is made of ABS + PC, which offers durability and resistance to industrial environments. The enclosure comes in a grey (RAL 7035) color The enclosure consists of one body, one door, one lock, and one mounting plate The door is plain, allowing a discreet look The door can be opened from the front and has a 3 mm double-bar lock The mounting plate is plain steel The enclosure offers high protection against dust and water with an IP66 rating (IEC 60529) It is also highly resistant to impacts, with an IK10 rating (IEC 62262), and offers protection against electric shocks with a class II electrical insulation rating The enclosure is UL certified and can be stored in ambient air temperatures ranging from -40 to 80°C without affecting its performance The door and mounting plate are removable by hinges and fixing elements, respectively The enclosure also offers fire resistance of up to 960°C (IEC 62208) and complies with NEMA classification 4X, IEC 62208, and NEMA classification 13 standards

Brand

Schneider Electric

Range

PanelSeT PLM GRP Enclosures

Part No

NSYPLM32PG

Weight (kg)

1.96 kg

Type

Thalassa PLM GRP Enclosures

Couplable

FALSE

With mounting plate

TRUE

Freestanding

FALSE

With glazed door

FALSE

With cover

FALSE

RAL-number

7035

Transparent cover

FALSE

Height

310

Degree of protection (IP)

IP66

Pitched roof

FALSE

Colour

Grey

Width

215

Intermediate mounting

FALSE

Surface finishing

Untreated

Number of doors

1

Material

Plastic

Number of locks

1

Suitable for outdoor set-up

TRUE

Corner model

FALSE

Suitable for wall mounting

TRUE

Material quality

Other

Depth

160

Suitable for wall built-in

TRUE

Pre-stamping

FALSE

With door

TRUE

Max. permissible load of the mounting plate according to IEC 62208

55

Mounting plate depth-adjustable

TRUE

Impact strength

IK10

With ventilation door

FALSE

EMC-version

FALSE

Degree of protection (NEMA)

4X

With rear door

FALSE

Pole fastening

TRUE

Max. permissible load of the enclosure according to IEC 62208

113

Max. permissible load of the door(s) according to IEC 62208

18
