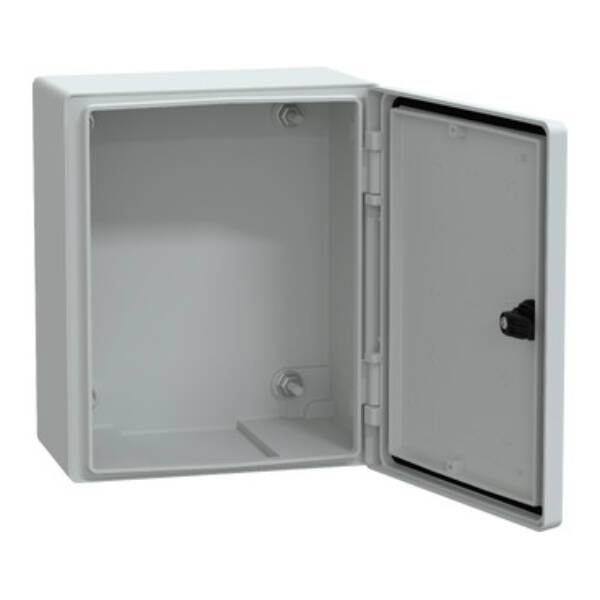

"This PLM is a wall-mounted enclosure that is suitable for multi-purpose applications" "The enclosure has a nominal height, width, and depth of 308 mm, 255 mm, and 160 mm, respectively" "It is made of polyester reinforced with fibreglass for the body, which offers durability and resistance to industrial and outdoor environments" "The enclosure comes in a grey (RAL 7035) color" "The enclosure consists of one body, one door, one mounting plate, and one lock" "The door is plain, allowing easy visibility of the equipment inside" "The door can be opened from the front and has a 3 mm double-bar lock" "The mounting plate is made of plain steel and can be removed from the enclosure by a fixing element" "The enclosure offers high protection against dust and water with an IP66 rating (IEC 60529)" "It is also highly resistant to impacts, with an IK10 rating (IEC 62262), and offers protection against electric shocks with a class II electrical insulation rating" "The enclosure is UL certified and can be stored in ambient air temperatures ranging from -40 to 80°C without affecting its performance"

Brand

Schneider Electric

Range

PanelSeT PLM GRP Enclosures

Part No

NSYPLM3025PG

Weight (kg)

3.30 kg

Type

Thalassa PLM GRP Enclosures

With mounting plate

TRUE

With glazed door

FALSE

Wall fastening possible

TRUE

RAL-number

7035

Tackable

FALSE

Height

308

Degree of protection (IP)

IP66

Pitched roof

FALSE

Colour

Grey

Width

255

Surface finishing

Untreated

Material

Plastic

Number of doors

1

Number of locks

1

Suitable for outdoor set-up

TRUE

Material quality

Polyester

Wall build in

TRUE

Depth

160

Mounting plate depth-adjustable

TRUE

Impact strength

IK10

With ventilation door

FALSE

EMC-version

FALSE

Degree of protection (NEMA)

4X

With backside door

FALSE

Pole fastening

TRUE

Floor installation possible

FALSE
