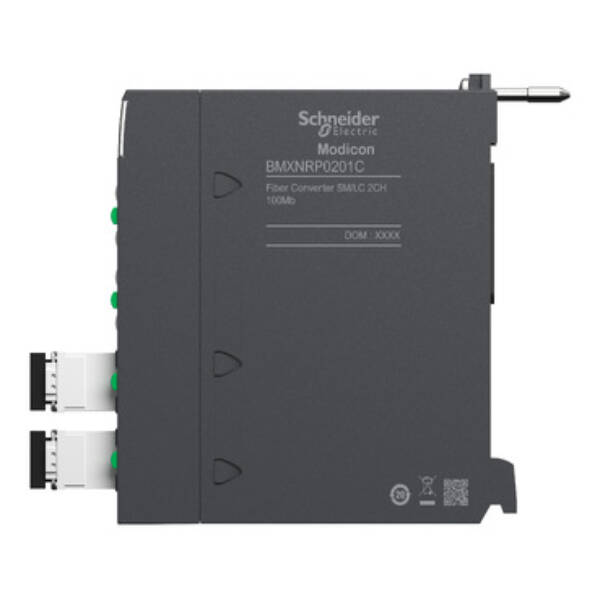

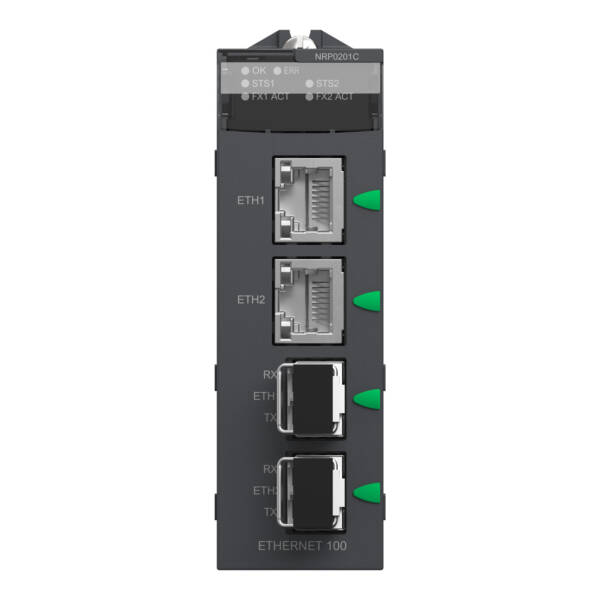

"This fiber converter module is part of the Modicon X80 range, an offer of common input/output for Modicon M340 and Modicon M580." "This fiber optic repeater is equipped with 2 RJ45 EtherNet ports and 2 fiber optic Ethernet ports." "Thanks to a protective coating on its circuit board, this product can be used in harsh environments with a temperature range from -25°C to +60°C/-13°F to 140°F." "Modicon X80 provides a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs." "Its casing provides IP20 protection of the electronics." "This module has a grey color, a weight of 0.203kg and dimensions of 32x100x86mm." "This product meets the needs of our customers from Smart Infrastructure, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Data centers and Power generation." "This product complies with CE, UL, CSA, RCM, and EAC standards and is certified for Power Generation, Merchant Navy, Railway and Hazardous areas applications." "The product must be installed on the rack and fixed with 2 screws." "Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC)." "Modicon X80 provides a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs."

Brand

Schneider Electric

Range

Modicon X80 I/Os

Part No

BMXNRP0201C

Weight (kg)

0.26 kg

Type

Modicon X80 I/Os

Supporting protocol for SERCOS

FALSE

SIL according to IEC 61508

None

With optical interface

FALSE

With potential separation

FALSE

Performance level acc. EN ISO 13849-1

None

Radio standard GPRS

FALSE

Height

55

Supporting protocol for INTERBUS-Safety

FALSE

Width

110

Redundancy

FALSE

Supporting protocol for AS-Interface Safety at Work

FALSE

Radio standard GSM

FALSE

Explosion safety category for dust

ATEX dust-ex-protection, Cat. 3D

Radio standard UMTS

FALSE

Depth

120

Explosion safety category for gas

ATEX gas-ex-protection, Cat. 3G

Supporting protocol for DeviceNet Safety

FALSE

Supporting protocol for EtherNet/IP

FALSE

Supporting protocol for Foundation Fieldbus

FALSE

Supporting protocol for SafetyBUS p

FALSE

Supporting protocol for PROFINET CBA

FALSE

Supporting protocol for PROFINET IO

FALSE

Supporting protocol for PROFIsafe

FALSE

Supporting protocol for ASI

FALSE

Radio standard Bluetooth

FALSE

Appendant operation agent (Ex ia)

FALSE

Radio standard WLAN 802.11

FALSE

Supporting protocol for PROFIBUS

FALSE

Type of data transmission

Other

Supporting protocol for TCP/IP

FALSE

Supporting protocol for KNX

FALSE

Supporting protocol for CAN

FALSE

Appendant operation agent (Ex ib)

FALSE

Supporting protocol for INTERBUS

FALSE

IO link master

FALSE

Supporting protocol for DeviceNet

FALSE

Supporting protocol for MODBUS

FALSE

Suitable for safety functions

FALSE

Supporting protocol for Data-Highway

FALSE

Supporting protocol for LON

FALSE

Supporting protocol for other bus systems

FALSE

Supporting protocol for SUCONET

FALSE

Number of HW-interfaces industrial Ethernet

4
