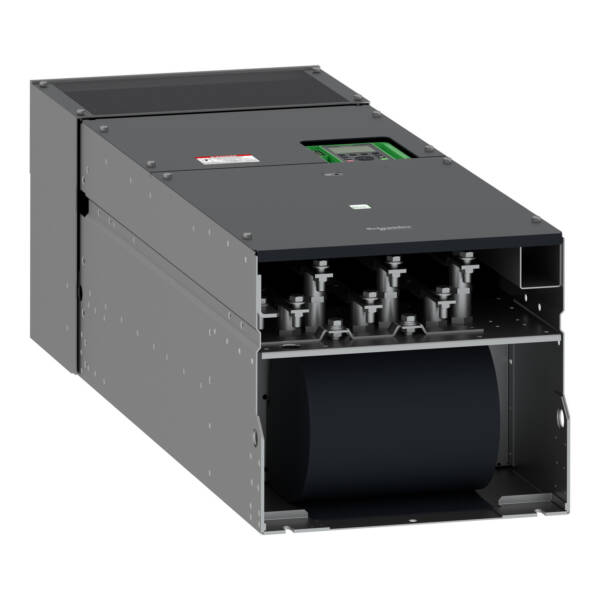

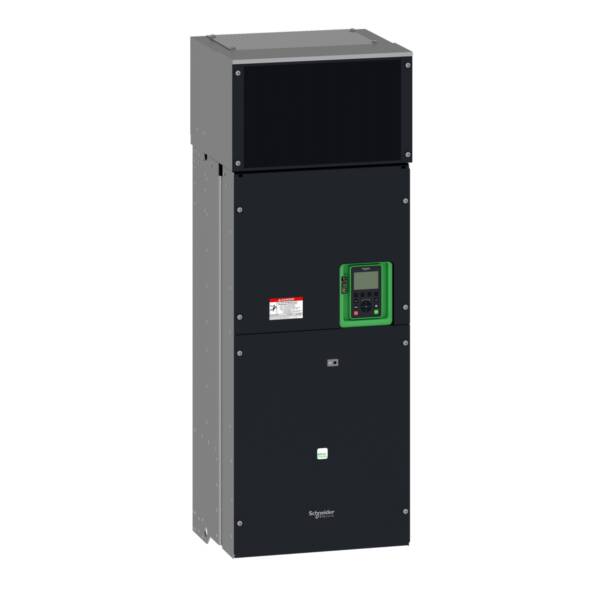

This Altivar Process ATV600 variable speed drive can feed 3-phase synchronous and asynchronous power motors. It features 3 built-in RJ45 communication ports as standard, 1 Ethernet port, 2 serial ports. It works at a rated supply voltage from 380V to 480V AC. This drive provides up to 30% energy saving when on standby due to the innovative ‘‘Stop and Go’’operation without additional costs. It is suitable for motors with power rating up to 220kW / 350hp for applications requiring slight overload (up to 120%). It is suitable for motors with power rating up to 160kW / 250hp for applications requiring significant overload (up to 150%). It weighs 172kg and its dimensions are, 440mm wide, 1195mm high, 380mm deep. This drive is focused on fluids management processing and energy saving, it offers extensive flexibility in water and wastewater, mining, minerals and metals, oil and gas and food and beverage applications. Accessories (fan kit, graphic display terminal) and options (I/O expansion modules, communication modules, EMC input filters) are available with Altivar Process ATV600 drives, depending on the drive rating. It is designed to be mounted in vertical position (+/- 10 °) on a wall. This new concept of drives meets the major needs of process and utilities in terms of equipment efficiency and total cost of ownership by supporting the energy management, asset management and also the overall performance of the process.

Brand

Schneider Electric

Range

Altivar Process ATV600

Part No

ATV630C22N4

Weight (kg)

180.00 kg

Type

Altivar Process ATV600

Supporting protocol for SERCOS

FALSE

With optical interface

TRUE

Type of converter

U converter

Mains voltage

380…480 V

Max. output frequency

500

Height

1190

Supporting protocol for INTERBUS-Safety

FALSE

Mains frequency

50/60 Hz

Width

440

With control unit

TRUE

With PC connection

FALSE

Supporting protocol for AS-Interface Safety at Work

FALSE

Number of phases input

3

Depth

377

Max. output at quadratic load at rated output voltage

220

Supporting protocol for DeviceNet Safety

FALSE

Supporting protocol for EtherNet/IP

TRUE

Supporting protocol for Foundation Fieldbus

FALSE

Max. output at linear load at rated output voltage

220

Supporting protocol for SafetyBUS p

FALSE

Number of phases output

3

Supporting protocol for PROFINET CBA

FALSE

Supporting protocol for PROFINET IO

TRUE

Supporting protocol for PROFIsafe

FALSE

Relative symmetric net voltage tolerance

10

Supporting protocol for ASI

FALSE

Supporting protocol for PROFIBUS

TRUE

Relative symmetric net frequency tolerance

5

Supporting protocol for TCP/IP

TRUE

Application in domestic- and commercial area permitted

TRUE

Supporting protocol for KNX

FALSE

Degree of protection (IP)

IP00

Supporting protocol for CAN

FALSE

Supporting protocol for INTERBUS

FALSE

Integrated breaking resistance

FALSE

Application in industrial area permitted

TRUE

Supporting protocol for BACnet

FALSE

Supporting protocol for DeviceNet

TRUE

Supporting protocol for MODBUS

TRUE

Number of digital inputs

6

Supporting protocol for Data-Highway

FALSE

Number of analogue outputs

2

Number of analogue inputs

3

4-quadrant operation possible

TRUE

Supporting protocol for LON

FALSE

Supporting protocol for other bus systems

FALSE

Supporting protocol for SUCONET

FALSE

Nominal output current I2N

427

Number of HW-interfaces RS-485

1

Number of HW-interfaces industrial Ethernet

1

Max. output voltage

480
