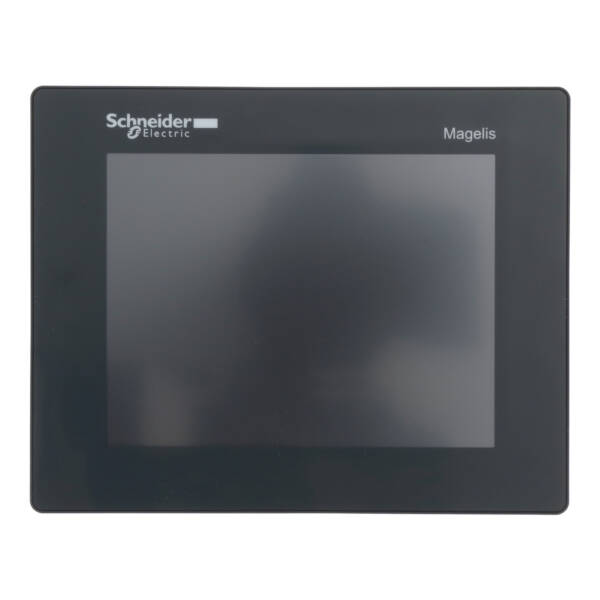

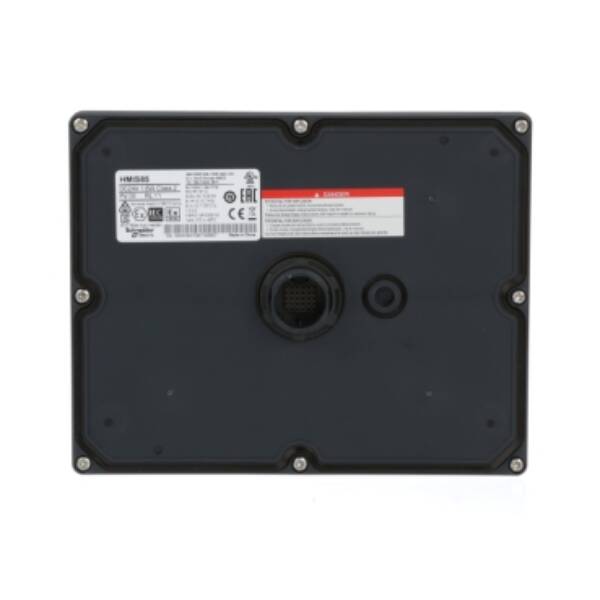

The HMI small touchscreen features 5.7inch backlight LED color TFT LCD display, supports 320 x 240 pixels QVGA resolution. This touch panel screen has 65536 colors with 50,000 hours of backlight lifespan. It supports Korean, Chinese (simplified Chinese), Japanese (ANK, Kanji), ASCII and Taiwanese (traditional Chinese) character fonts. The analogue touch panel with 16 levels brightness provides four viewing angles 60° left, 60° right, 40° top, 60° bottom in horizontal x vertical. Its dimensions are 163mm (width) x 129.4mm (depth). It weighs 0.405kg. It is suitable for use with small machines, HVAC, pumping and packaging applications. The integrated design of Harmony SCU delivers maximum functionality while keeping installation easy. The Harmony SCU (formerly known as Magelis SCU) is designed to operate with the EcoStruxure Machine Expert, delivers adequate functionality for control of small machines.

Brand

Schneider Electric

Range

Harmony SCU

Part No

HMIS85

Weight (kg)

0.68 kg

Type

Harmony SCU

With message indication

TRUE

Supporting protocol for SERCOS

FALSE

Number of HW-interfaces other

1

Number of HW-interfaces USB

2

Useful project memory/user memory

128000

With numeric keyboard

FALSE

Number of grey-scales/blue-scales of display

16

With alpha numeric keyboard

FALSE

Certified for UL hazardous location division 2

FALSE

Radio standard GPRS

FALSE

With message system (incl. buffer and confirmation)

TRUE

Process value representation (output) possible

TRUE

Supporting protocol for INTERBUS-Safety

FALSE

Type of display

TFT

Certified for UL hazardous location class I

FALSE

Certified for UL hazardous location class III

FALSE

Certified for UL hazardous location division 1

FALSE

Certified for UL hazardous location class II

FALSE

Supporting protocol for EtherCAT

FALSE

With printer output

FALSE

Process default value (input) possible

TRUE

Supporting protocol for AS-Interface Safety at Work

FALSE

With recipes

TRUE

Degree of protection (IP), front side

IP65/IP67

Radio standard GSM

FALSE

Radio standard UMTS

FALSE

Number of online languages

8

Additional software components, loadable

TRUE

Supporting protocol for DeviceNet Safety

FALSE

Touch technology

Resistive touch

Supporting protocol for EtherNet/IP

TRUE

Supporting protocol for Foundation Fieldbus

FALSE

With SW interfaces

FALSE

Operating temperature

0…50 Degrees celsius

Screen diagonal

5.7

Certified for UL hazardous location group C (ethylene)

FALSE

Certified for UL hazardous location group A (acetylene)

FALSE

Certified for UL hazardous location group B (hydrogen)

FALSE

Certified for UL hazardous location group F (carbonaceous dusts)

FALSE

Certified for UL hazardous location group G (non-conductive dusts)

FALSE

Certified for UL hazardous location group D (propane)

FALSE

Certified for UL hazardous location group E (metal dusts)

FALSE

Built-in depth

76.22

Supporting protocol for SafetyBUS p

FALSE

Voltage type (supply voltage)

AC/DC

Supporting protocol for PROFINET CBA

FALSE

Supporting protocol for PROFINET IO

FALSE

Supporting protocol for PROFIsafe

FALSE

Supporting protocol for ASI

FALSE

Radio standard Bluetooth

FALSE

Radio standard WLAN 802.11

FALSE

Supporting protocol for PROFIBUS

FALSE

Supporting protocol for TCP/IP

TRUE

Supporting protocol for KNX

FALSE

Number of pixels, horizontal

320

Colour display

TRUE

Supporting protocol for CAN

TRUE

Supporting protocol for INTERBUS

FALSE

Number of colours of the display

65000

IO link master

TRUE

Rail mounting possible

FALSE

Supporting protocol for DeviceNet

FALSE

Suitable for safety functions

FALSE

Supporting protocol for Modbus

TRUE

Width of the front

163

Supporting protocol for Data-Highway

FALSE

Height of the front

129.4

Supply voltage DC

24 Volt

Supporting protocol for LON

FALSE

Supporting protocol for other bus systems

TRUE

Supporting protocol for SUCONET

FALSE

Wall mounting/direct mounting

TRUE

Number of pixels, vertical

240

Number of HW-interfaces RS-485

1

Number of HW-interfaces industrial Ethernet

1

Number of HW-interfaces RS-232

1
