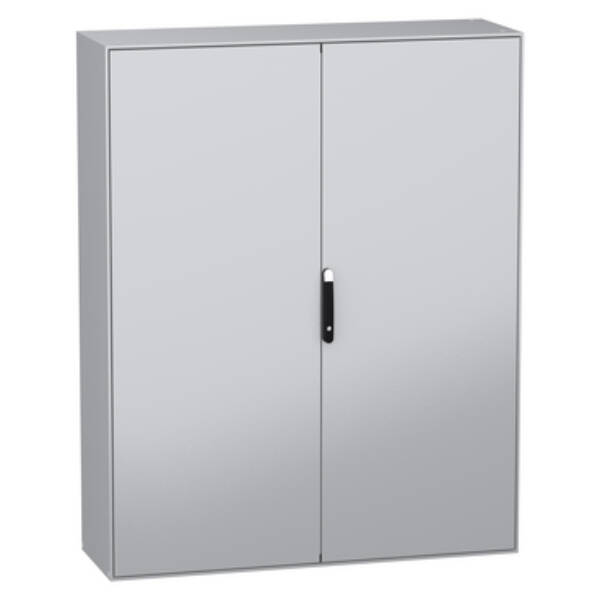

PanelSeT SM is a multi-purpose steel compact monobloc floor-standing enclosure designed for use in harsh environments. It has a nominal height, width and depth of 2000mm, 1600mm and 500mm respectively. The enclosure is made in grey color (RAL7035) with an epoxy-polyester powder surface finish and the handle is made in black color (RAL9005) It consists of one body, two plain doors, one cable gland plate with one entry, one plain mounting plate and four mounting plate brackets. The doors can be opened up to 120°, allowing easy access to the equipment inside. The enclosure has a four-point lock with a handle with 5mm double-bar insert. The doors, the mounting plate and the mounting plate brackets can be removed for maintenance purposes. It is certified by BV and UL and marine certified by DNV. This enclosure has IP55 ingress protection rating against dust and water and IK10 impact protectoin rating. It conforms to IEC 62208, IK10 (IEC62262) and IP55 (IEC60529) It has a single entry point for cables The enclosure is accessible from the front

Brand

Schneider Electric

Range

PanelSeT SM

Part No

NSYSM2016502DP

Weight (kg)

242.00 kg

Type

Spacial SM

Couplable

FALSE

With mounting plate

TRUE

Freestanding

FALSE

With glazed door

FALSE

Suitable for metrical mounting

TRUE

With cover

FALSE

RAL-number

7035

Transparent cover

FALSE

Height

2000

Degree of protection (IP)

IP55

Pitched roof

FALSE

Floor standing wall model

TRUE

Colour

Grey

Width

1600

Intermediate mounting

FALSE

Surface finishing

Powder coating

Material

Steel

Number of doors

2

Corner model

FALSE

Number of locks

1

Suitable for outdoor set-up

FALSE

Material quality

Other

Suitable for wall mounting

FALSE

Depth

500

Suitable for wall built-in

FALSE

Pre-stamping

FALSE

Max. permissible load of the mounting plate according to IEC 62208

4905

With door

TRUE

Mounting plate depth-adjustable

FALSE

Impact strength

IK10

With ventilation door

FALSE

EMC-version

FALSE

Degree of protection (NEMA)

13

With rear door

FALSE

Pole fastening

FALSE

Max. permissible load of the enclosure according to IEC 62208

4900

Max. permissible load of the door(s) according to IEC 62208

588
