LRD1521

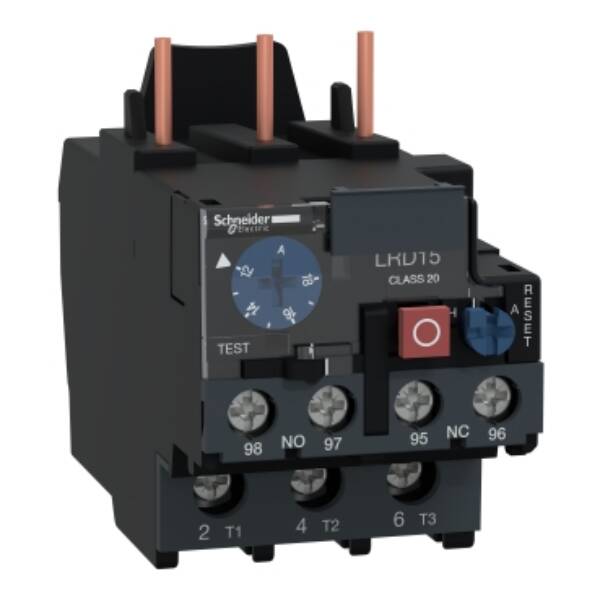

TeSys LRD thermal overload relays - 12...18 A - class 20 - Schneider Electric - LRD1521
Automation
TeSys LRD thermal overload relay, 18A/690V, thermal setting range 12-18A, tripping class 20, for protection of 3-phase motors 7.5kW@400V. Differential device with phase failure and load unbalance detection. It provides a thermal adjustment dial, a manual-automatic reset selector, a test selector for simulation of a tripping, reset and stop buttons, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signaling. Settings are protected by a transparent cover lockable by sealing. Connection by screw clamp terminals, it connects directly to the bottom terminals of 3-pole contactors LC1D09-D38. Mounting on DIN rail or screw fixing, separated from the contactor, with use of a terminal block LAD7B105 (to be ordered separately). Multi standards certified (IEC, UL, CSA, Marine), Green Premium compliant (RoHS/REACh).
Our Price £68.33 +VAT
SAVE 26% OFF List Price
Specifications
- Brand
- Schneider Electric
- Type
- TeSys Deca overload relays
- Range
- TeSys Deca overload relays
- Part No
- LRD1521
- Weight (kg)
- 0.23 kg
Datasheet for LRD1521 - TeSys LRD thermal overload relays - 12...18 A - class 20 - Schneider Electric - LRD1521
