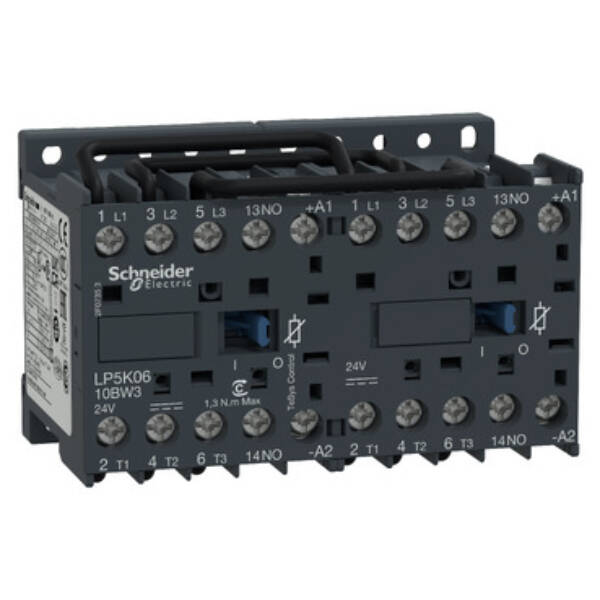

TeSys K reversing contactor - 3P - AC-3 <= 440 V 6 A - 1 NO - 24 V DC coil - Schneider Electric - LP5K0610BW3
TeSys K reversing contactor - 3P - AC-3 <= 440 V 6 A - 1 NO - 24 V DC coil - Schneider Electric - LP5K0610BW3

LP5K0610BW3

TeSys K reversing contactor - 3P - AC-3 <= 440 V 6 A - 1 NO - 24 V DC coil - Schneider Electric - LP5K0610BW3

Control

List Price £112.20 +VAT

Our Price £84.15 +VAT

SAVE 25% OFF List Price
Estimated delivery between 7-10 working days
Get in touch
TeSys K reversing contactor, 3 poles (3NO), for motor control applications up to 6A/690V AC-3 (2.2kW@400V). It provides low consumption 24V DC coils with transient suppressor module, 2NO built-in auxiliary contacts, connection by screw clamp terminals. For operating rates until 600 cycles/hour in AC-3 and environments until 50°C, it procures reliability and durability to standard applications. Compact (90mm width), DIN-rail mounting or screw fixing. With pre-wired reversing power connections, mechanical interlock (without electrical interlocking). Multi standards certified (IEC, UL, CSA, CCC, EAC)
Brand
Schneider Electric
Range
TeSys K contactors
Part No
LP5K0610BW3
Weight (kg)
0.45 kg
Type
TeSys K contactors
Type of electrical connection of main circuit
Screw connection
Rated operation power NEMA
2.24
Rated control supply voltage Us at DC
24 V
Rated operation current Ie at AC-3, 400 V
6
Voltage type for actuating
DC
Function
Reversing safety
Degree of protection (IP)
IP20
Rated operation power at AC-3, 400 V
2.2
Degree of protection (NEMA)
Other

Datasheet for LP5K0610BW3 - TeSys K reversing contactor - 3P - AC-3 <= 440 V 6 A - 1 NO - 24 V DC coil - Schneider Electric - LP5K0610BW3
