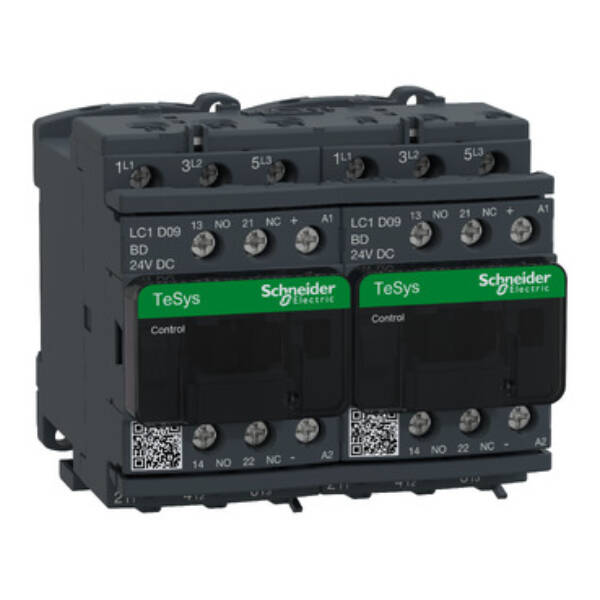

TeSys D reversing contactor - 3P(3 NO) - AC-3 - <= 440 V 9 A - 24 V DC coil - Schneider Electric - LC2D09BDV
TeSys D reversing contactor - 3P(3 NO) - AC-3 - <= 440 V 9 A - 24 V DC coil - Schneider Electric - LC2D09BDV

LC2D09BDV

TeSys D reversing contactor - 3P(3 NO) - AC-3 - <= 440 V 9 A - 24 V DC coil - Schneider Electric - LC2D09BDV

Control

List Price £213.57 +VAT

Our Price £160.18 +VAT

SAVE 25% OFF List Price
Estimated delivery between 7-10 working days
Get in touch
TeSys Deca reversing contactor, 3 poles (3NO), for motor control applications up to 9A/440V AC-3/3e (4kW@400V). It is provided with 24V DC coils with integral transient suppressor modules, 2NO+2NC built-in auxiliary contacts (NC mirror contacts), connection by screw clamp terminals. It is suitable for operating rates until 3600 cycles/hour and environment temperature until 60°C, it procures high reliability and durability. Compact (90mm width), DIN-rail mounting or screw fixing. With pre-wired reversing power connections, mechanical interlock (without electrical interlocking). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).
Brand
Schneider Electric
Range
TeSys Deca contactors
Part No
LC2D09BDV
Weight (kg)
1.08 kg
Type
TeSys Deca contactors
Type of electrical connection of main circuit
Screw connection
craft\elements\db\ElementQuery
3.73
Rated control supply voltage Us at DC
24 V
craft\elements\db\ElementQuery
DC
Rated operation current Ie at AC-3, 400 V
9
Degree of protection (IP)
IP20
craft\elements\db\ElementQuery
Reversing safety
Rated operation power at AC-3, 400 V
4
craft\elements\db\ElementQuery
Other

Datasheet for LC2D09BDV - TeSys D reversing contactor - 3P(3 NO) - AC-3 - <= 440 V 9 A - 24 V DC coil - Schneider Electric - LC2D09BDV

Download
