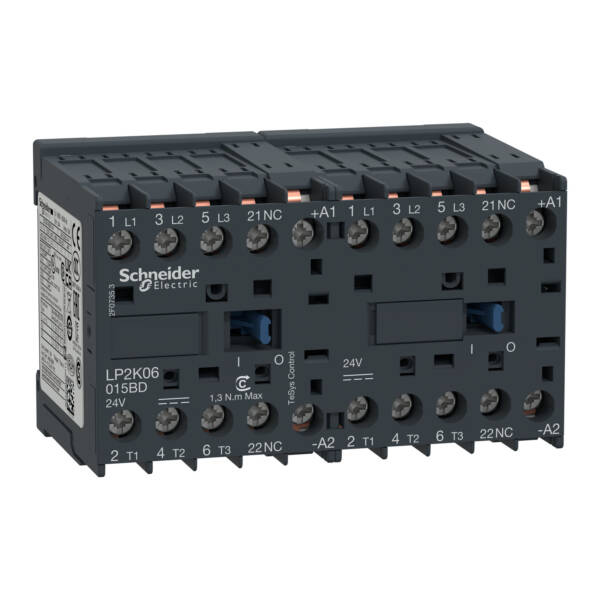

TeSys K reversing contactor - 3P - AC-3 <= 440 V 6 A - 1 NC - 24 V DC coil - Schneider Electric - LP2K06015BD
TeSys K reversing contactor - 3P - AC-3 <= 440 V 6 A - 1 NC - 24 V DC coil - Schneider Electric - LP2K06015BD

LP2K06015BD

TeSys K reversing contactor - 3P - AC-3 <= 440 V 6 A - 1 NC - 24 V DC coil - Schneider Electric - LP2K06015BD

Control

List Price £94.10 +VAT

Our Price £70.58 +VAT

SAVE 25% OFF List Price
Estimated delivery between 7-10 working days
Get in touch
"TeSys K reversing contactor, 3 poles (3NO), for motor control applications up to 6A/690V AC-3 (4kW@400V)," "and for non-inductive load control applications up to 20A/690V AC-1." "It provides a 24V DC coil, 1NC built-in auxiliary contact, connection by solder pins for printed circuit boards." "For operating rates until 600 cycles/hour and environments until 50°C, it procures reliability and durability to standard applications." "With feature (90mm width), DIN-rail mounting or screw fixing." "Multi standards certified (IEC, UL, CSA, CCC, EAC)
Brand
Schneider Electric
Range
TeSys K contactors
Part No
LP2K06015BD
Weight (kg)
0.49 kg
Type
TeSys K contactors
Type of electrical connection of main circuit
PCB connection
Rated operation power NEMA
2.24
Voltage type for actuating
DC
Rated operation current Ie at AC-3, 400 V
6
Rated control supply voltage Us at DC
24 V
Degree of protection (IP)
IP20
Function
Reversing safety
Rated operation power at AC-3, 400 V
2.2
Degree of protection (NEMA)
Other

Datasheet for LP2K06015BD - TeSys K reversing contactor - 3P - AC-3 <= 440 V 6 A - 1 NC - 24 V DC coil - Schneider Electric - LP2K06015BD
