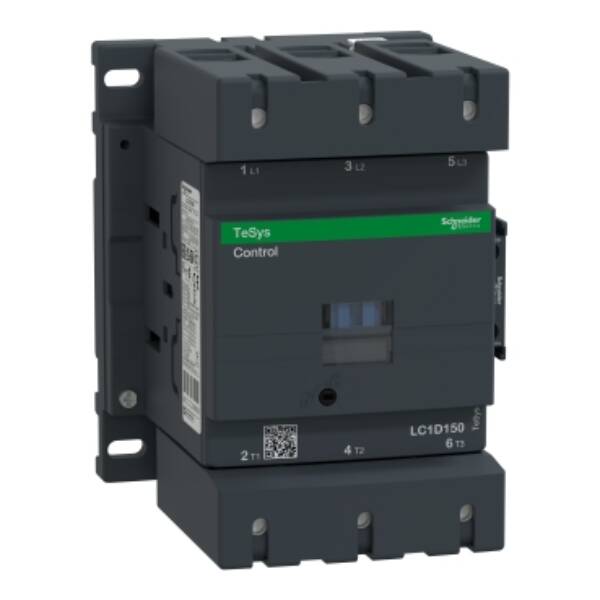

TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 150 A - 48 V AC 50/60 Hz coil - Schneider Electric - LC1D150E7

TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 150 A - 48 V AC 50/60 Hz coil - Schneider Electric - LC1D150E7

LC1D150E7

TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 150 A - 48 V AC 50/60 Hz coil - Schneider Electric - LC1D150E7

Automation

TeSys Deca contactor, 3 poles (3NO), for motor control applications up to 150A/1000V AC-3 (75kW@400V). It provides a 48V 50/60Hz AC coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirrror contact), power connection by screw connectors 2 inputs, control connection by screw clamp terminals. For operating rates until 1200 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (120mm width), mounting on 2 DIN-rails or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

~~List Price £593.95 +VAT~~

Our Price £445.46 +VAT

SAVE 26% OFF List Price

Estimated delivery between 7-10 working days

Specifications

Brand: Schneider Electric
Type: TeSys Deca contactors
Range: TeSys Deca contactors
Part No: LC1D150E7
Weight (kg): 2.49 kg

Datasheet for LC1D150E7 - TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 150 A - 48 V AC 50/60 Hz coil - Schneider Electric - LC1D150E7

Download
