GVAS226

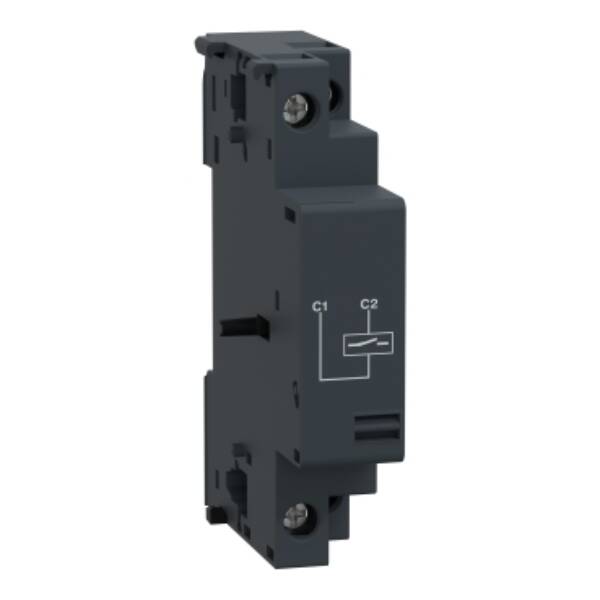

TeSys GV2 & GV3 - shunt trip - 220...240 V AC 60 Hz - Schneider Electric - GVAS226
Control
List Price £32.56
+VAT
Our Price £24.42
+VAT
SAVE 25% OFF List Price
Add to basket
Estimated delivery between 7-10 working days
Get in touch
Product description
Specifications
Downloads
TeSys GV electrical trip, MX shunt release, 220-240V AC 60Hz, for motor circuit breakers GV2, GV3. It trips the circuit breaker when the control voltage is applied in limits 0.7-1.1 Uc with an impulse duration greater than 20ms or a maintained signal. To be mounted on right-hand side of the circuit breaker, connection by screw clamp terminals. Multi standards certified (IEC, UL, CSA, CCC, EAC),
Brand
Schneider Electric
Range
TeSys Deca - frame 2
Part No
GVAS226
Weight (kg)
0.11 kg
Type
TeSys GV2
Rated control supply voltage Us at AC 60HZ
220…240 V
Suitable for motor safety switch
FALSE
Type of electric connection
Screw connection
Suitable for power circuit breaker
TRUE
Suitable for off-load switch
FALSE
Suitable for overload relay
FALSE
Voltage type for actuating
AC
Datasheet for GVAS226 - TeSys GV2 & GV3 - shunt trip - 220...240 V AC 60 Hz - Schneider Electric - GVAS226
Download
