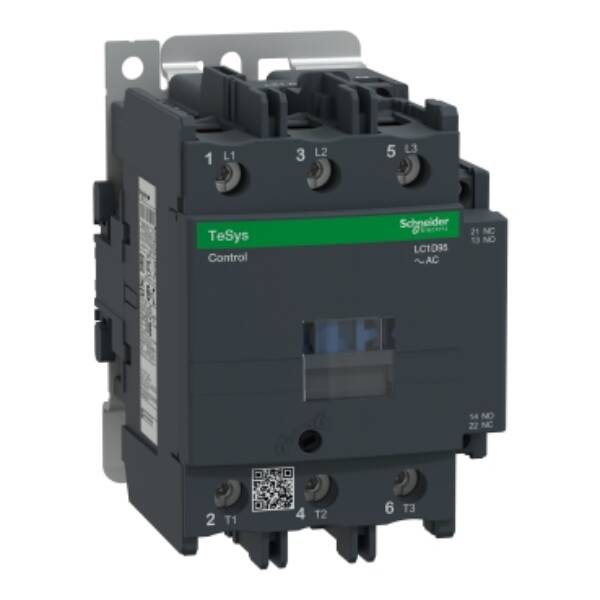

TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 95 A - 240 V AC 50/60 Hz coil - Schneider Electric - LC1D95U7
TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 95 A - 240 V AC 50/60 Hz coil - Schneider Electric - LC1D95U7

LC1D95U7

TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 95 A - 240 V AC 50/60 Hz coil - Schneider Electric - LC1D95U7

Control

List Price £411.75 +VAT

Our Price £308.81 +VAT

SAVE 26% OFF List Price
Fast Track Delivery Product
Get in touch
TeSys Deca contactor, 3 poles (3NO), for motor control applications up to 95A/1000V AC-3/AC-3e (45kW@400V). It provides a 240V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts, power connection by screw terminals and control by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (85mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine),
Brand
Schneider Electric
Range
TeSys Deca contactors
Part No
LC1D95U7
Weight (kg)
1.55 kg
Type
TeSys Deca contactors
Type of electrical connection of main circuit
Screw connection
Width
85
Rated control supply voltage AC 50 Hz
240 Volt
Rated control supply voltage AC 60 Hz
240 Volt
Rated operation power at AC-3, 400 V
45
Number of normally open contacts as main contact
3
Number of auxiliary contacts as normally closed contact
1
Number of auxiliary contacts as normally open contact
1
Modular version
FALSE
Operating voltage AC 50 Hz
440 Volt
Depth
130
Operating voltage AC 60 Hz
440 Volt
Rated operation current Ie at AC-1, 400 V
125
Voltage type for actuating
AC
Height
127
Rated operation current Ie at AC-4, 400 V
32
Rated operation current Ie at AC-3, 400 V
95
Rated operation power at AC-4, 400 V
15

Datasheet for LC1D95U7 - TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 95 A - 240 V AC 50/60 Hz coil - Schneider Electric - LC1D95U7
